ADSP-BF537: Blackfin Processor with Embedded Network Connectivity
The Blackfin® Processor family has been expanded to address the ever-increasing need for pervasive embedded network connectivity with two new family members. This connectivity is powerful when utilized in conjunction with the high performance 16-/32-bit Blackfin embedded processor core, the flexible cache architecture, the enhanced DMA subsystem, and the Dynamic Power Management (DPM) functionality. System designers can take advantage of the combined control and signal processing capabilities of the processor core across a wide range of end applications through the scalability of the pin and code compatibility of these new family members.
The ADSP-BF536 and ADSP-BF537 are a functional extension of the popular ADSP-BF531/ADSP-BF532/ADSP-BF533 processors, and they are ideally suited for a variety of networked applications. The ADSP-BF537 is the higher performance series member, with more embedded memory enabling higher throughput needs for embedded applications such as video security/surveillance and industrial-environment-based distributed control/factory automation applications. The ADSP-BF536 offers exceptional performance and is designed for low cost connected devices such as remote monitoring devices, VoIP, point-of-sale terminals, and biometrics/security applications. Both devices are ideally suited for a broad range of industrial, instrumentation, medical, and consumer appliance applications— allowing for scalability based upon the required network bandwidth and mix of control, plus signal processing needed in the end product.
技术特性
- Up to 600MHz High Performance Blackfin processor
- 132KB of on chip full speed SRAM
- 10-stage RISC MCU/DSP pipeline with mixed 16-/32-bit ISA for optimal code density
- Powerful and flexible cache architecture suitable for soft real-time control tasks and industry-standard operating systems, plus hard real-time signal processing
- Full SIMD architecture, including instructions for accelerated video and image processing
- Embedded IEEE 802.3 Compliant 10/100 Ethernet MAC with buffered oscillator output to a separate PHY
- Controller Area Network (CAN) 2.0B interface
- Two-Wire Interface Controller
- Glueless Video Capture/Display Port
|
技术指标
- Clock Speed MHz (Max): 600MHz
- External Memory Bus: 16bit
- PPI: Yes
- USB Device: No
- Core Voltage (V): 0.8-1.3
- Core Voltage Regulation: Yes
- Package: CSP_BGA
市场与应用
- Remote Monitoring Devices
- Video Surveillance and Security
- Industrial and Instrumentation
- Industrial Factory Automation
- Consumer Electronics
- Network Management
- Machine Vision
|
型号选项
| 产品型号 |
Package |
Pins |
Temp.
Range |
Packing,
Qty |
Price*(100-499) |
Price*1000 pcs |
RoHS |
| ADSP-BF537BBC-5A Status: Production |
182 ball CSPBGA (12x12x1.7mm) |
182 |
Ind |
Tray, 189 |
$20.86 |
$19.81 |
No |
| ADSP-BF537BBCZ-5A Status: Production |
182 ball CSPBGA (12x12x1.7mm) |
182 |
Ind |
Tray, 189 |
$18.05 |
$17.15 |
Yes |
| ADSP-BF537BBCZ-5AV Status: Production |
182 ball CSPBGA (12x12x1.7mm) |
182 |
Ind |
Tray, 189 |
$20.09 |
$19.09 |
Yes |
| ADSP-BF537BBCZ-5B Status: Production |
CHIP SCALE BGA |
208 |
Ind |
Tray, 90 |
$18.05 |
$17.15 |
Yes |
| ADSP-BF537BBCZ-5BV Status: Production |
CHIP SCALE BGA |
208 |
Ind |
Tray, 90 |
$20.09 |
$19.09 |
Yes |
| ADSP-BF537KBCZ-6AV Status: Production |
182 ball CSPBGA (12x12x1.7mm) |
182 |
Comm. |
Tray, 189 |
$22.31 |
$21.20 |
Yes |
| ADSP-BF537KBCZ-6BV Status: Production |
CHIP SCALE BGA |
208 |
Comm. |
Tray, 90 |
$22.31 |
$21.20 |
Yes |
开发工具
| 产品型号 |
封装 |
引脚 |
温度范围 |
包装和数量 |
报价*(100-499) |
报价*1000 pcs |
RoHS |

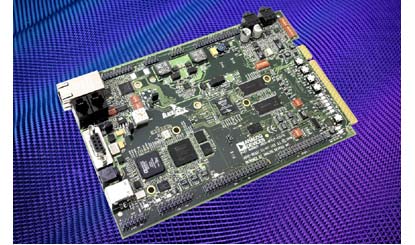

| ADZS-BF537-EZLITE 产品状态: 量产 |
评估板 |
- |
商业 |
1 |
$ 350.00 |
$ 350.00 |
是 |

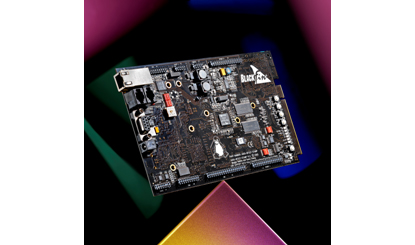

| ADZS-BF537-STAMP |
评估板 |
|
|
|
|
|
|
| ADZU-BF537-EZLITE 产品状态: 量产 |
评估板 |
- |
商业 |
1 |
- |
- |
是 |
ADSP-BF537 应用技术支持与电子电路设计开发资源下载
- ADSP-BF537 数据手册DataSheet 下载 . pdf
- ADI 模拟器件公司比较器产品选型指南 . pdf
- Analog Devices, Inc. 美国模拟器件公司产品订购手册 .pdf
- Blackfin 处理器编程手册 .pdf（Rev 1.3）
