LT1115 Ultra-Low Noise, Low Distortion, Audio Op Amp

The LT®1115 is the lowest noise audio operational amplifier available. This ultralow noise performance (0.9nV/rtHz at 1kHz) is combined with high slew rates (>15V/µs) and very low distortion specifications.

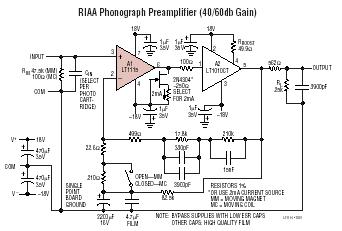

The RIAA circuit shown below using the LT1115 has very low distortion and little deviation from ideal RIAA response (see graph).

产品特点 Features Voltage Noise 1.2nV/ rtHz Max at 1kHz 0.9nV/ rtHz Typ at 1kHz Voltage and Current Noise 100% Tested Gain-Bandwidth Product 40MHz Min Slew Rate 10V/µs Min Voltage Gain 2 Million Min Low THD@10kHz, AV= -10, RL=600ohms 0.002% VO=7VRMS Low IMD, CCIF Method, AV= +10: 0.002%, RL=600ohms ,VO=7VRMS 参数

应用 High Quality Audio Preamplifiers Low Noise Microphone Preamplifiers Very Low Noise Instrumentation Amplifiers Low Noise Frequency Synthesizers Infrared Detector Amplifiers Hydrophone Amplifiers Low Distortion Oscillators 典型应用图

LT1115 订购信息和价格参考Package Variations and Pricing

器件型号	封装	引脚	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LT1115CN8	PDIP	8	C	$3.57	$2.90
LT1115CN8#PBF	PDIP	8	C	$3.57	$2.90
LT1115CSW	SO	16	C	$4.67	$3.70
LT1115CSW#PBF	SO	16	C	$4.67	$3.70
LT1115CSW#TR	SO	16	C		$3.76
LT1115CSW#TRPBF	SO	16	C		$3.76

LT1115 数据手册及相关资料下载

1. 数据手册(英文) : LT1115 - Ultra-Low Noise, Low Distortion, Audio Op Amp.PDF
2. 应用指南 (英文) : AN43 - Bridge Circuits.PDF
3. 应用指南 (英文) : AN48 - Using the LTC Op Amp Macromodels.PDF
4. 应用指南 (英文) : AN67 - linear Technology Magazine Circuit Collection, Volume III.PDF
5. 设计要点 (英文) : DN140 - Updated Operational Amplifier Selection Guide for Optimum Noise Performance.PDF
6. 可靠性数据 : R041 Reliability Data .PDF
