LT1168 Low Power, SingleResistor Gain Programmable, Precision Instrumentation Amplifier
The LT®1168 is a micropower, precision instrumentation amplifier that requires only one external resistor to set gains of 1 to 10,000. The low voltage noise of 10nV/rtHz (at 1kHz) is not compromised by low power dissipation (350µA typical for ±15V supplies). The wide supply range of ±2.3V to ±18V allows the LT1168 to fit into a wide variety of industrial as well as battery-powered applications.
The high accuracy of the LT1168 is due to a 20ppm maximum nonlinearity and 0.4% max gain error (G = 10). Previous monolithic instrumentation amps cannot handle a 2k load resistor whereas the nonlinearity of the LT1168 is specified for loads as low as 2k. The LT1168 is laser trimmed for very low input offset voltage (40µV max), drift (0.3µV/°C), high CMRR (90dB, G = 1) and PSRR (103dB, G = 1). Low input bias currents of 250pA max are achieved with the use of superbeta processing. The output can handle capacitive loads up to 1000pF in any gain configuration while the inputs are ESD protected up to 13kV (human body). The LT1168 with two external 5k resistors passes the IEC 1000-4-2 level 4 specification.
The LT1168 is a pin-for-pin improved second source for the AD620 and INA118. The LT1168, offered in 8-pin PDIP and SO packages, requires significantly less PC board area than discrete op amp resistor designs. These advantages make the LT1168 the most cost effective solution for precision instrumentation amplifier applications
产品特点 Features

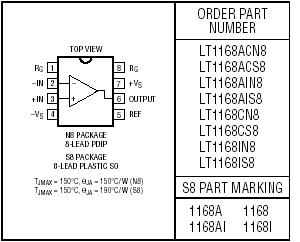

封装 |
应用

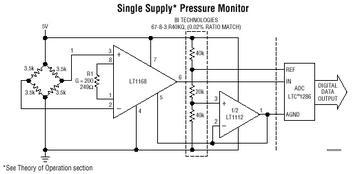

典型应用图
参数 |
LT1168 订购信息和价格参考Package Variations and Pricing
| 器件型号 | 封装 | 引脚 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
| LT1168ACN8 | PDIP | 8 | C | $7.10 | $6.05 |
| LT1168ACN8#PBF | PDIP | 8 | C | $7.10 | $6.05 |
| LT1168ACS8 | SO | 8 | C | $7.10 | $6.05 |
| LT1168ACS8#PBF | SO | 8 | C | $7.10 | $6.05 |
| LT1168ACS8#TR | SO | 8 | C | $6.11 | |
| LT1168ACS8#TRPBF | SO | 8 | C | $6.11 | |
| LT1168AIN8 | PDIP | 8 | I | $8.15 | $6.95 |
| LT1168AIN8#PBF | PDIP | 8 | I | $8.15 | $6.95 |
| LT1168AIS8 | SO | 8 | I | $8.15 | $6.95 |
| LT1168AIS8#PBF | SO | 8 | I | $8.15 | $6.95 |
| LT1168AIS8#TR | SO | 8 | I | $7.00 | |
| LT1168AIS8#TRPBF | SO | 8 | I | $7.00 | |
| LT1168CN8 | PDIP | 8 | C | $4.35 | $3.70 |
| LT1168CN8#PBF | PDIP | 8 | C | $4.35 | $3.70 |
| LT1168CS8 | SO | 8 | C | $4.35 | $3.70 |
| LT1168CS8#PBF | SO | 8 | C | $4.35 | $3.70 |
| LT1168CS8#TR | SO | 8 | C | $3.76 | |
| LT1168CS8#TRPBF | SO | 8 | C | $3.76 | |
| LT1168IN8 | PDIP | 8 | I | $5.00 | $4.25 |
| LT1168IN8#PBF | PDIP | 8 | I | $5.00 | $4.25 |
| LT1168IS8 | SO | 8 | I | $5.00 | $4.25 |
| LT1168IS8#PBF | SO | 8 | I | $5.00 | $4.25 |
| LT1168IS8#TR | SO | 8 | I | $4.31 | |
| LT1168IS8#TRPBF | SO | 8 | I | $4.31 |
LT1168 数据手册及相关资料下载
- 数据手册(英文) : LT1168 - Low Power, Single Resistor Gain Programmable, Precision Instrumentation Amplifier.PDF
- 可靠性数据 : R376 Reliability Data .PDF
- LT Journal: May 2000 Measure Resistances Easily, without Reference Resistor or Current Source.PDF
- LT Journal : May 2000 New Instrumentation Amplifier: Single-Resistor Gain Set and Precision Front End Make Accuracy Easy.PDF
