LTC1344 Software SelectableCable Terminator
The LTC®1344 features six software-selectable multiprotocol cable terminators. Each terminator can be configured as an RS422 (V.11) 100Ohms minimum differential load, V.35 T-network load or an open circuit for use with RS232 (V.28) or RS423 (V.10) transceivers that provide their own termination. When combined with the LTC1343, the LTC1344 forms a complete software-selectable multiprotocol serial port. A data bus latch feature allows sharing of the select lines between multiple interface ports. The LTC1344 is available in a 24-lead SSOP
产品特点 Features
- Software Selectable Cable Termination for:
- RS232 (V.28)
- RS423 (V.10)
- RS422 (V.11)
- EIA530
- EIA530-A
- Outputs Won’t Load the Line with Power Off
参数
 |
应用
- Data Networking
- CSU and DSU
- Data Routers

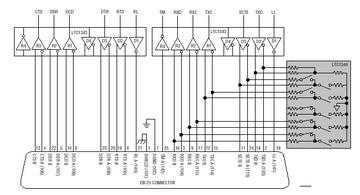

典型应用图
 |
LTC1344 订购信息和价格参考Package Variations and Pricing
| 器件型号 |
封装 |
引脚 |
温度 |
价格 (以 1 ~ 99 片为批量) |
价格 (以 1000 片为批量) * |
| LTC1344ACG |
SSOP |
24 |
C |
$7.80 |
$6.40 |
| LTC1344ACG#PBF |
SSOP |
24 |
C |
$7.80 |
$6.40 |
| LTC1344ACG#TR |
SSOP |
24 |
C |
|
$6.50 |
| LTC1344ACG#TRPBF |
SSOP |
24 |
C |
|
$6.50 |
| LTC1344AIG |
SSOP |
24 |
I |
$9.05 |
$7.65 |
| LTC1344AIG#PBF |
SSOP |
24 |
I |
$9.05 |
$7.65 |
| LTC1344AIG#TR |
SSOP |
24 |
I |
|
$7.75 |
| LTC1344AIG#TRPBF |
SSOP |
24 |
I |
|
$7.75 |
| LTC1344CG |
SSOP |
24 |
C |
$7.80 |
$6.40 |
| LTC1344CG#PBF |
SSOP |
24 |
C |
$7.80 |
$6.40 |
| LTC1344CG#TR |
SSOP |
24 |
C |
|
$6.50 |
| LTC1344CG#TRPBF |
SSOP |
24 |
C |
|
$6.50 |
| LTC1344IG |
SSOP |
24 |
I |
$9.60 |
$7.80 |
| LTC1344IG#PBF |
SSOP |
24 |
I |
$9.60 |
$7.80 |
| LTC1344IG#TR |
SSOP |
24 |
I |
|
$7.90 |
| LTC1344IG#TRPBF |
SSOP |
24 |
I |
|
$7.90 |
LTC1344 数据手册及相关资料下载
- 数据手册 (英文) : LTC1344 - Software SelectableCable Terminator.PDF
- 应用指南 (英文) : AN87 - linear Technology Magazine Circuit Collection, Volume V: Data Conversion, Interface and Signal Conditioning Products.PDF
- 可靠性数据 : R277 Reliability Data .PDF
- 产品选型卡 : LTC2870/LTC2871/LTC2872 Multiprotocol Transceivers.PDF
