LTC1968 精准宽带宽、RMS 至 DC 转换器
The LTC®1968 is a true RMS-to-DC converter that uses an innovative delta-sigma computational technique. The benefits of the LTC1968 proprietary architecture, when compared to conventional log-antilog RMS-to-DC converters, are higher linearity and accuracy, bandwidth independent of amplitude and improved temperature behavior.
The LTC1968 operates with single-ended or differential input signals and accurately supports crest factors up to 4. Common mode input range is rail-to-rail. Differential input range is 1VPEAK, and offers unprecedented linearity. The LTC1968 allows hassle-free system calibration at any input voltage.
The LTC1968 has a rail-to-rail output with a separate output reference pin providing flexible level shifting; it operates on a single power supply from 4.5V to 5.5V. A low power shutdown mode reduces supply current to 0.1µA.
The LTC1968 is packaged in the space-saving MSOP package, which is ideal for portable applications
产品特点 Features
|
应用

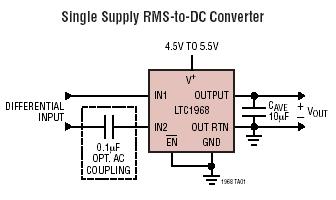

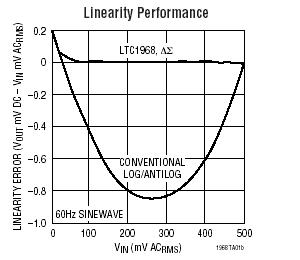

典型应用图
参数 |
LTC1968 订购信息和价格参考Package Variations and Pricing
| 器件型号 | 封装 | 引脚 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
| LTC1968CMS8 | MSOP | 8 | C | $4.49 | $3.40 |
| LTC1968CMS8#PBF | MSOP | 8 | C | $4.49 | $3.40 |
| LTC1968CMS8#TR | MSOP | 8 | C | $3.46 | |
| LTC1968CMS8#TRPBF | MSOP | 8 | C | $3.46 | |
| LTC1968IMS8 | MSOP | 8 | I | $7.59 | $5.69 |
| LTC1968IMS8#PBF | MSOP | 8 | I | $7.59 | $5.69 |
| LTC1968IMS8#TR | MSOP | 8 | I | $5.75 | |
| LTC1968IMS8#TRPBF | MSOP | 8 | I | $5.75 |
