MC10EL51:5.0 V ECL Differential Clock/Data D Flip-Flop
The MC10EL/100EL51 is a differential clock D flip-flop with reset. The device is functionally similar to the E151 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E151 the EL51 is ideally suited for those applications which require the ultimate in AC performance.
技术特性
- 475ps Propagation Delay
- 2.8GHz Toggle Frequency
- ESD Protection: > 1 KV HBM, > 100 V MM
- PECL Mode Operating Range: VCC= 4.2 V to 5.7 V with VEE= 0 V
- NECL Mode Operating Range: VCC= 0 V with VEE= -4.2 V to -5.7 V
- Internal Input Pulldown Resistors on D, R, and CLK
- Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
- Moisture Sensitivity Level 1
For Additional Information, see Application Note AND8003/D
- Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
- Transistor Count = 73 devices
- Pb-Free Packages are Available
|

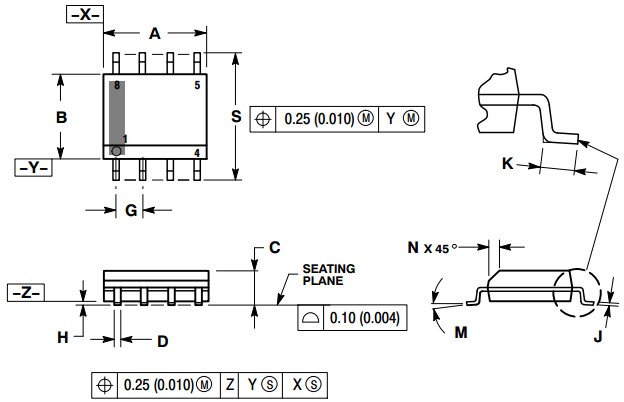

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| MC10EL51DG |
Active |
|
5.0 V ECL Differential Clock/Data D Flip-Flop |
SOIC-8 |
751-07 |
1 |
Tube |
98 |
|
| MC10EL51DR2G |
Active |
|
5.0 V ECL Differential Clock/Data D Flip-Flop |
SOIC-8 |
751-07 |
1 |
Tape and Reel |
2500 |
|
| MC10EL51DTG |
Active |
|
5.0 V ECL Differential Clock/Data D Flip-Flop |
TSSOP-8 |
948R-02 |
3 |
Tube |
100 |
|
| MC10EL51DTR2G |
Active |
|
5.0 V ECL Differential Clock/Data D Flip-Flop |
TSSOP-8 |
948R-02 |
3 |
Tape and Reel |
2500 |
|
