NE592:Video Amplifier
The NE592 is a monolithic, two-stage, differential output, wideband video amplifier. It offers fixed gains of 100 and 400 without external components and adjustable gains from 400 to 0 with one external resistor. The input stage has been designed so that with the addition of a few external reactive elements between the gain select terminals, the circuit can function as a high-pass, low-pass, or band-pass filter. This feature makes the circuit ideal for use as a video or pulse amplifier in communications, magnetic memories, display, video recorder systems, and floppy disk head amplifiers. Now available in an 8-pin version with fixed gain of 400 without external components and adjustable gain from 400 to 0 with one external resistor.
技术特性
- Three 6th Order Standard Definition 8 MHz Filters
- Internal Fixed Gain = 6 dB
- AC- or DC- Coupled Inputs / Outputs
- Integrated Level Shifter
- Operating Voltage +5 V
- ESD HBM Protection > 8 kV
应用
- Floppy Disk Head Amplifier
- Video Amplifier
- Pulse Amplifier in Communications
- Magnetic Memory
|

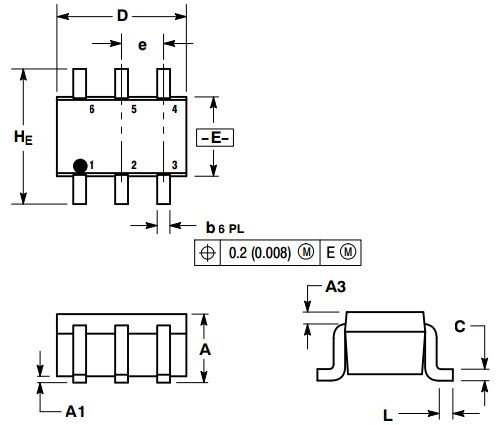

封装图 PACKAGE DIMENSIONS
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| NE592D14G |
Active |
|
Video Amplifier |
SOIC-14 |
751A-03 |
1 |
Tube |
55 |
$0.4267 |
| NE592D14R2G |
Active |
|
Video Amplifier |
SOIC-14 |
751A-03 |
1 |
Tape and Reel |
2500 |
$0.4267 |
| NE592D8G |
Active |
|
Video Amplifier |
SOIC-8 |
751-07 |
1 |
Tube |
98 |
$0.3867 |
| NE592D8R2G |
Active |
|
Video Amplifier |
SOIC-8 |
751-07 |
1 |
Tape and Reel |
2500 |
$0.3867 |
| NE592N14G |
Lifetime  |
|
Video Amplifier |
PDIP-14 |
646-06 |
|
Tube |
500 |
$0.44 |
| NE592N8G |
Lifetime |
|
Video Amplifier |
PDIP-8 |
626-05 |
|
Tube |
50 |
$0.4 |
| NE592D14 |
Last Shipments |
|
Video Amplifier |
SOIC-14 |
751A-03 |
1 |
Tube |
55 |
|
| NE592D14R2 |
Last Shipments |
|
Video Amplifier |
SOIC-14 |
751A-03 |
1 |
Tape and Reel |
2500 |
|
| NE592D8 |
Last Shipments |
|
Video Amplifier |
SOIC-8 |
751-07 |
1 |
Tube |
98 |
|
| NE592D8R2 |
Last Shipments |
|
Video Amplifier |
SOIC-8 |
751-07 |
1 |
Tape and Reel |
2500 |
|
| NE592N14 |
Last Shipments |
|
Video Amplifier |
PDIP-14 |
64-06 |
|
Tube |
25 |
|
| NE592N8 |
Last Shipments |
|
Video Amplifier |
PDIP-8 |
626-05 |
|
Tube |
50 |
|
