AAT3510 Micropower μP Reset with Watchdog Timer

The AAT351x PowerManager products are members of Skyworks' Total Power Management IC (TPMIC™) product family. This family of microprocessor reset circuits provides the ultimate in versatility, allowing system designers full customization of the μP monitor and reset function without any additional components. The AAT351x family offers several combinations of threshold voltage, watchdog timeout period, reset active period, and output drive configurations, which are all factory-programmed options. All devices are available in 32 reset threshold voltages from 2.6V up to 5V, with three watchdog timeout periods from 6.3ms to 1600ms and three reset timeouts from 1ms up to 140ms. Available output configurations are active low push-pull, active low open drain, active low bi-directional, and active high push-pull. The AAT351x family is designed to ignore fast negative transients on VDD and to ensure that reset outputs remain valid down to 1V. The AAT351x family is available in the Pb-free, space-saving 5-pin SOT23 surface mount package and is specified over the -40 to +85°C temperature range.

技术特性

Tight Voltage Tolerance: ±1.5%
Low Quiescent Current: 5μA
Guaranteed Reset Valid Down to 1V
32 Voltage Options from 2.6V to 5.0V
Three Reset Active Period Options:
1ms, 20ms, 140ms
Three Watchdog Timeout Period Options:
6.3ms, 102ms, 1600ms
Four Output Options:
Open Drain
Inverting
Non-Inverting
Bi-Directional
Low Temperature Coefficient: 100ppm/°C
5-Pin SOT23 Package

订购信息 Ordering Information

AAT3510

应用领域 APPLICATION

Critical μP and μC Supply Monitoring
Embedded Control Systems
Industrial Controllers
Intelligent Instruments
Notebook Computers
Portable Electronics
Power-On Reset Circuits

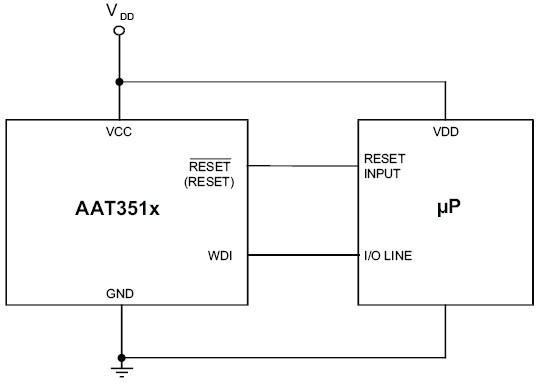

AAT3510 典型应用

应用技术支持与电子电路设计开发资源下载	版本信息	大小
AAT3510 数据资料DataSheet下载:pdf	Rev.V2	2 页
