SKY13414-485LF 0.1-3.0 GHz SP4T Antenna Switch

The SKY13414-485LF is a Single Pole, Four-Throw (SP4T) antenna switch. With an internal 50 Ω termination. The high linearity performance and low insertion loss achieved by the SKY13414-485LF make it an ideal choice for main/diversity switching commonly used in LTE-based handsets, data cards, and tablets that use antenna diversity solutions. The SKY13414-485LF is part of a scalable family of products that covers SP4T through SP8T switches that allow up to eight bands of WCDMA/LTE:

SKY13414-485LF SP4T Antenna Switch (this Data Sheet)
SKY13415-485LF SP5T Antenna Switch (Data Sheet #201704)
SKY13416-485LF SP6T Antenna Switch (Data Sheet #201679)
SKY13417-485LF SP7T Antenna Switch (Data Sheet #201661)
SKY13418-485LF SP8T Antenna Switch (Data Sheet #201712)

The symmetric port designs provide flexibility in signal routing for both receive diversity and higher power TD-SCDMA/TDD-LTE, WCDMA/FDD, and LTE transmit/receive applications.

技术特性

Broadband frequency range: 0.1 to 3.0 GHz
Low insertion loss: 0.45 dB typical @ 2.7 GHz
High isolation: >25 dB @ 2.7 GHz
Internal 50 Ω port to control diversity antenna impedance when device is not in use
Integrated logic
Small QFN (14-pin, 2.0 x 2.0 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

应用领域 APPLICATION

Any 2G/3G/4G antenna diversity or LTE (TDD/FDD) transmit/receive system for which GSM transmit is not required

订购信息 Ordering Information

SKY13414-485LF

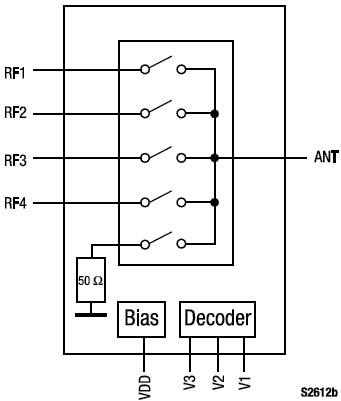

功能框图 Functional Block Diagram
