SKY65047-360LF 0.4-3.0 GHz Low-Noise Amplifier

The SKY65047-360LF is a high linearity Low-Noise Amplifier (LNA). The excellent gain, superior low-noise and low current consumption makes the SKY65047-360LF ideal for use in wireless infrastructure applications. The device may also be used in a variety of LNA applications. All active circuitry in the module is contained in a single Microwave Monolithic Integrated Circuit (MMIC). The device is manufactured with an advanced silicon germanium (SiGe) process, which allows a single supply operation while maintaining excellent low-noise performance and linearity. The SKY65047-360LF is provided in a low-cost, miniature 2 x 2 mm Dual Flat No-Lead (DFN) package.

技术特性

Noise Figure = 1.2 dB @ 915 MHz
Noise Figure = 0.8 dB @ 1575 MHz
Noise Figure = 1.1 dB @ 2450 MHz
Small signal gain = 16.6 dB @ 1575 MHz
Low operating current = 7.2 mA
External, adjustable bias setting
Built-in power-down control
Single DC supply voltage, 2.7 V to 3.8 V
Miniature DFN (8-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY65047-360LF Low Noise Amplifier

SKY65047-360LF

TW17-D900 (915 MHz) TW17-D910 (1575 MHz)TW17-D920 (2450 MHz)

应用领域 APPLICATION

Wireless infrastructure: WLAN, WiMAX, broadband, cellular base stations
Test instrumentation
Satellite receivers
Paging
Remote metering
WLL and ISM receivers
GPS receivers

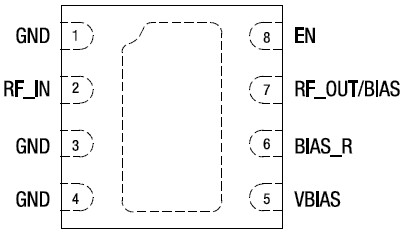

功能框图 Functional Block Diagram
