SKY65116 390–500 MHz Linear Power Amplifier
The SKYWORKS SKY65116 is a fully matched, 12-pin, 8 x 8 mm2, surface mount multi-chip module (MCM), linear Power Amplifier (PA), high linearity and high efficiency surface mount module designed for use in the 390–500 MHz band. The device is fabricated using SKYWORKS high reliability Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) process, which allows for single supply operation while maintaining high efficiency and good linearity. Microwave Monolithic Integrated Circuits (MMICs), comprised of GaAs and Silicon CMOS, contain 020all the active circuitry in the module. This includes the in-module bias circuitry, as well as the RF interstage matching circuit. The input and output match is realized off-chip within the module package to optimize efficiency and high power performance (P1 dB = 32.5 dBm) into a 50 W load. Primary bias to the SKY65116 can be supplied directly from a single cell lithium-ion or other suitable battery with a nominal output of 3.6 V. No external supply side switch is needed as typical “off” leakage is a few microamperes with full primary voltage supplied from the battery. The module can operate over the temperature range of -40 °C to +85 °C. A populated evaluation board is available upon request.
技术特性
订购信息 Ordering Information
|
应用领域 APPLICATION

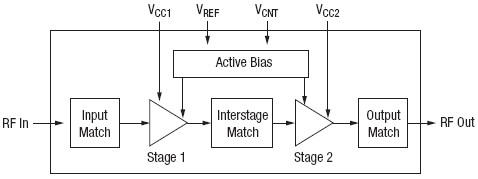

功能框图 Functional Block Diagram
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| SKY65116 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
