SKY67215-11 400-700 MHz Low-Noise Amplifier Module
The SKY67215-11 is a high performance, Low-Noise Amplifier (LNA) designed for use in 400 to 700 MHz wireless infrastructure applications. The device consists of a single high linearity, LNA and all associated matching components. The only external component necessary for proper operation is an external resistor, used to set the DC current. The device is also completely DC bypassed. The package design nearly eliminates external surface mount components, greatly reduces printed circuit board area, and offers low thermal resistance for enhanced Mean Time Between Failures (MTBFs). For optimum performance in the following frequency ranges, refer to the following product Data Sheets (all devices are pin-to-pin compatible with the SKY67215-11):
• 0.7 GHz to 1.2 GHz: SKY67216-11 (document #201808)
• 1.6 GHz to 2.1 GHz: SKY67221-11 (document #201838)
• 2.2 GHz to 3.0 GHz: SKY67226-11 (document #201841)
技术特性
- Requires only one external component
- Optimized for 400 to 700 MHz operation
- Noise Figure: 0.67 dB typical @ 500 MHz
- Gain: 21.7 dB typical @ 500 MHz
- Input return loss: 16.8 dB typical @ 500 MHz
- Operating voltage range: 3.3 to 5.0 V
- Adjustable supply current: 30 to 100 mA
- High linearity IIP3: +13.8 dBm typical @ 500 MHz
- MCM (16-pin, 4 x 4 mm) package (MSL3, 260 °C per JEDEC J-STD-020) package
订购信息 Ordering Information
| SKY67215-11 400-700 MHz LNA |
SKY67215-11 |
SKY67215-11-EVB |
|
应用领域 APPLICATION
- Public safety radio
- ISM systems
- Military radio
- Mobile computing
- Wireless sensors

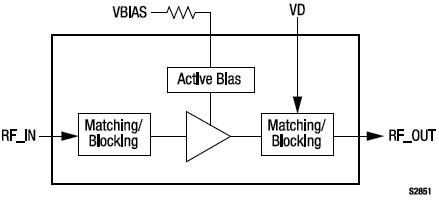

功能框图 Functional Block Diagram
|
