SKY67216-11 500-1200 MHz Integrated Low-Noise Amplifier Module
The SKY67216-11 is a high performance, Low-Noise Amplifier (LNA) designed for use in 500 to 1200 MHz wireless infrastructure applications. The device consists of a single high linearity, LNA and all associated matching components. The only external component necessary for proper operation is an external resistor, used to set the DC current. The device is also completely DC bypassed. The package design nearly eliminates external surface mount components, greatly reduces printed circuit board area, and offers low thermal resistance for enhanced Mean Time Between Failures (MTBFs). For optimum performance in the following frequency ranges, refer to the following product Data Sheets (all devices are pin-to-pin compatible with the SKY67216-11):
• 400 MHz to 700 MHz: SKY67215-11 (document #201842)
• 1.6 GHz to 2.1 GHz: SKY67221-11 (document #201838)
• 2.2 GHz to 3.0 GHz: SKY67226-11 (document #201841)
技术特性
- Requires only one external component
- Optimized for 500 to 1200 MHz operation
- Noise Figure: 0.62 dB typical @ 850 MHz
- Gain: 19.1 dB typical @ 850 MHz
- Input return loss: 17 dB typical @ 850 MHz
- Output return loss: 18 dB typical @ 850 MHz
- Operating voltage range: 3.3 to 5.0 V
- Adjustable supply current: 30 to 120 mA
- High linearity IIP3: +16.4 dBm typical @ 850 MHz
- MCM (16-pin, 4 x 4 mm) package (MSL3, 260 °C per JEDEC J-STD-020) package
订购信息 Ordering Information
| SKY67216-11 500-1200 MHz LNA |
SKY67216-11 |
EN32-D519-001_V1 |
|
应用领域 APPLICATION
- GSM, CDMA, WCDMA, LTE, and ISM systems
- Cellular infrastructure

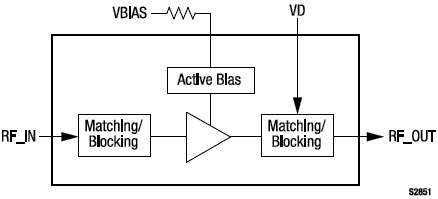

功能框图 Functional Block Diagram
|
