SKY67226-11 2.2-3.0 GHz Integrated Low-Noise Amplifier Module
The SKY67226-11 is a high performance, integrated Low-Noise Amplifier (LNA) designed for use in 2.2 to 3.0 GHz wireless infrastructure applications. The device consists of a single high linearity, LNA and all associated matching components. The only external component necessary for proper operation is an external resistor, used to set the DC current. The device is also completely DC bypassed. The package design nearly eliminates external surface mount components, greatly reduces printed circuit board area, and offers low thermal resistance for enhanced Mean Time Between Failures (MTBFs). For optimum performance in the following frequency ranges, refer to the following product Data Sheets (all devices are pin-to-pin compatible with the SKY67226-11):
• 0.4 GHz to 0.7 GHz: SKY67215-11 (document #201842)
• 0.7 GHz to 1.2 GHz: SKY67216-11 (document #201808)
• 1.6 GHz to 2.1 GHz: SKY67221-11 (document #201838)
技术特性
- Requires only one external component
- Optimized for 2.2 to 3.0 GHz operation
- Noise Figure: 1.02 dB typical @ 2.5 GHz
- Gain: 16.6 dB typical @ 2.5 GHz
- Input return loss: 22 dB typical @ 2.5 GHz
- Operating voltage range: 3.3 to 5.0 V
• Adjustable supply current: 30 to 110 mA
- High linearity IIP3: +20.9 dBm typical @ 2.5 GHz
- MCM (16-pin, 4 x 4 mm) package (MSL3, 260 °C per JEDEC J-STD-020) package
订购信息 Ordering Information
| SKY67226-11 2.2-3.0 GHz Integrated LNA Module |
SKY67226-11 |
SKY67226-11-EVB |
|
应用领域 APPLICATION
- Satellite Digital Audio Radio Service (SDARS)
- LTE systems
- Cellular infrastructure
- ISM band systems

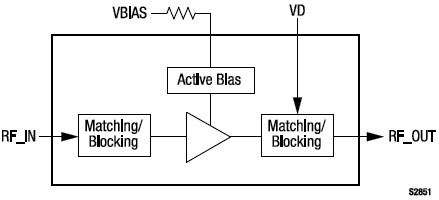

功能框图 Functional Block Diagram
|
