EVAL6205N L6205 DMOS Dual Full Bridge Driver Evaluation Board

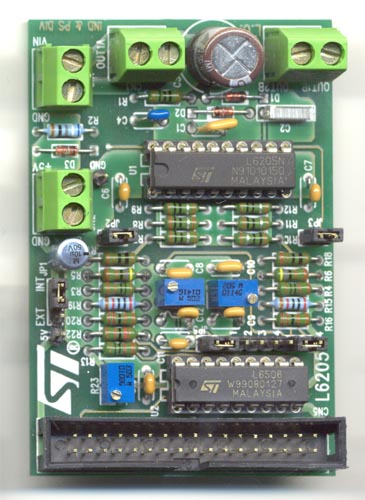

The EVAL6205N will help you in evaluating the L6205 in PowerDIP package. It implements a typical application, enabled to run one to four DC motors or one stepper motor. On the board the L6506, PWM current controller, provides the current control for the L6205N power section. Screw connectors provide connection to motor supply rail and 5 V reference for the logic inputs, as well as the four outputs to motor windings. EVAL6205N can be hooked-up to practiSPIN interface board (EVALpractiSPIN) through a 34-pin connector. This also gives direct access to ICs input signals as well as making possible to provide reference voltages for current control PWM. Operating frequency and reference voltage (independent for the two channels) for the L6506 PWM current control loops could be set by means of three pots placed on the board. EVAL6205N can be used as well to evaluate the L6225N product just adjusting pot settings.
技术特性
- OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
- 5.6A OUTPUT PEAK CURRENT (2.8A DC)
- RDS(ON) 0.3W TYP. VALUE @ Tj = 25 °C
- OPERATING FREQUENCY UP TO 100KHz
- NON DISSIPATIVE OVERCURRENT
- PROTECTION
- PARALLELED OPERATION
- CROSS CONDUCTION PROTECTION
- THERMAL SHUTDOWN
- UNDER VOLTAGE LOCKOUT
- INTEGRATED FAST FREE WHEELING DIODES
| 功能框图
 |
EVAL6205N 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| EVAL6205N |
Active |
|
1000 |
|
|
|
|
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN1794: PractiSPIN evaluation system configuration and set up guide |
2 |
406KB |
| AN1762: L6205, L6206, L6207 dual full bridge drivers |
1 |
1468KB |
| AN3991: How to drive multiple stepper motors with the L6470 motor driver |
1 |
1760B |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM0682: Quick start guide for the EVAL6205N power flash demonstration board |
1 |
396KB |
