EVAL6206Q Dual full bridge with programmable overcurrent

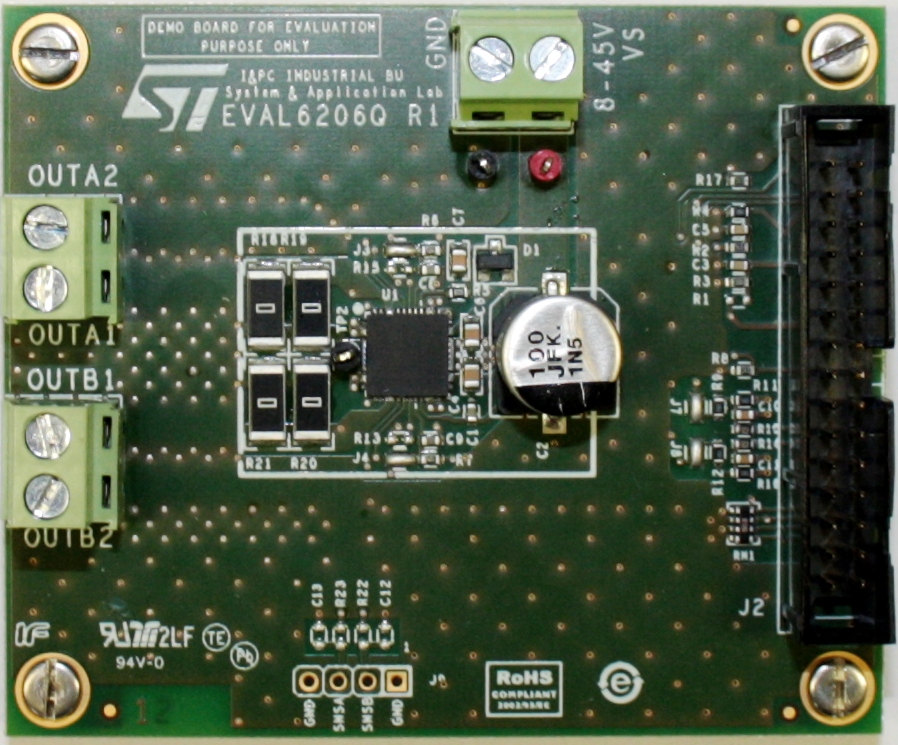

The EVAL6206Q demonstration board allows the user to test the L6206Q functions. The dual full bridges integrated into the L6206Q can be used to drive a single 2-phase stepper motor or up to four DC motors (unidirectional). The bridges can also operate in parallel mode. The board can be driven using the STEVAL-PCC009V2 communication board and the PractiSPIN 2 evaluation software.
技术特性
- Voltage range from 8 V to 52 V
- Phase current up to 2.5 Ar.m.s.
- Adjustable overcurrent threshold
- Logic inputs 5 V / 3.3 V compliant
- Small application footprint with high thermal performance
- Suitable for use in combination with PractiSPIN™ 2 software
| 功能框图
 |
EVAL6206Q 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| EVAL6206Q |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| EVAL6206Q : DB1612: Dual full bridge with programmable overcurrent |
1 |
1783KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN3360: 3.2 W LED power supply based on HVLED805 |
2 |
2873KB |
| AN3410: Dual full bridge with programmable overcurrent |
1 |
1958B |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
