EVAL6208Q Stepper motor driver mounting the L6208Q

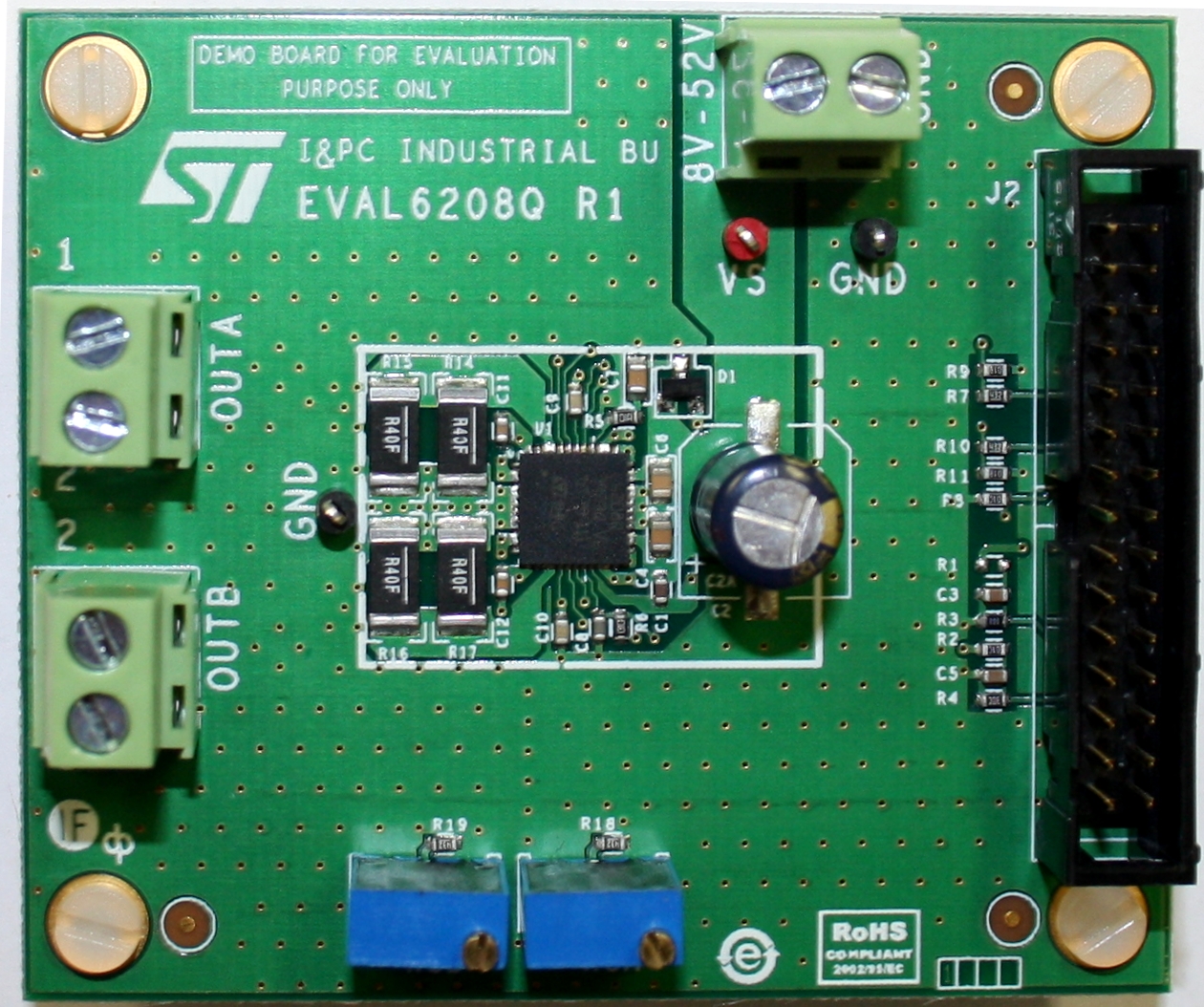

The EVAL6208Q is a stepper motor driver board allowing the user to test the L6208Q functions.
The board can be driven using the STEVAL-PCC009V2 communication board and the PractiSPIN 2 evaluation software
技术特性
- Voltage range from 8 V to 52 V
- Phase current up to 2.5 Ar.m.s.
- Adjustable PWM current control OFF-time
- Logic inputs 5 V / 3.3 V compliant
- Small application footprint with high thermal performance
- Suitable for use in combination with PractiSPIN™ 2 software
