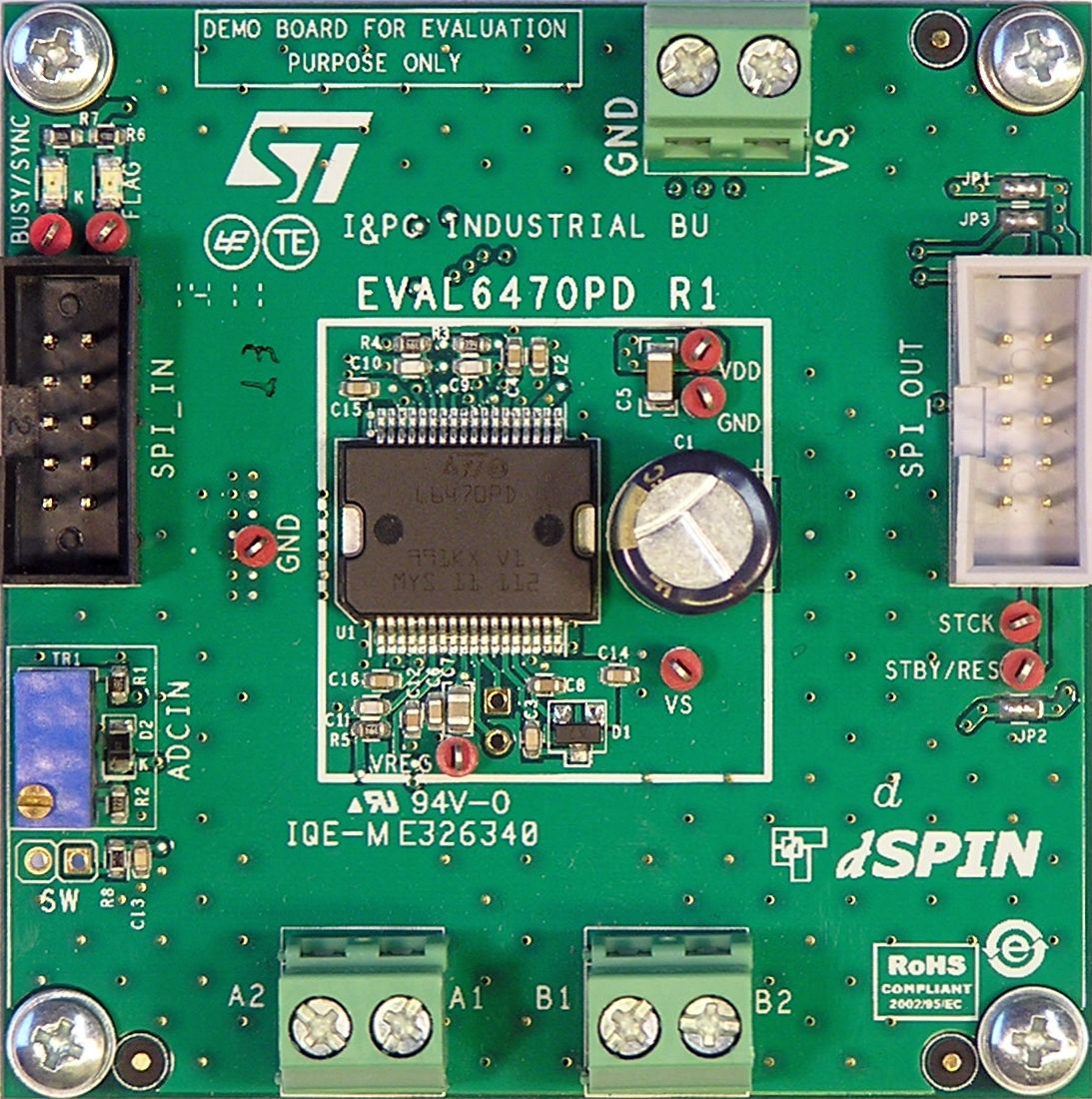

EVAL6470PD Fully integrated stepper motor driver mounting the L6470 in a high power PowerSO package
The EVAL6470PD demonstration board is a fully integrated microstepping motor driver. In combination with the STEVAL-PCC009V2 communication board and dSPIN evaluation software, the board allows the engineer to investigate all the features of the L6470 device. In particular, the board can be used to check the voltage mode driving and to regulate the L6470 parameters in order to fit the application requirements. The 4-layer layout and the PowerSO package allow the top thermal performance to be obtained. The EVAL6470PD supports the daisy-chain configuration making it suitable for the evaluation of the L6470 in multi-motor applications.
技术特性
- Voltage range from 8 V to 45 V
- Phase current up to 3 Ar.m.s.
- Dual SPI connector (daisy-chain configuration suitable)
- SW input
- FLAG and BUSY LED indicators
- Adjustable supply voltage compensation
- High thermal performance (Rthj-a12 °C/W typical)
- Suitable for use in combination with the STEVAL-PCC009V2
| 功能框图
 |
EVAL6470PD 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| EVAL6470PD |
Preview |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| EVAL6470PD : DB1501: Fully integrated stepper motor driver mounting the L6470 in a high power PowerSO package |
2 |
3919KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN3360: 3.2 W LED power supply based on HVLED805 |
2 |
2873KB |
| AN3991: How to drive multiple stepper motors with the L6470 motor driver |
1 |
1760B |
