EVALPM8803-FLY IEEE802.3at compliant demonstration kit with synchronous flyback PoE converter

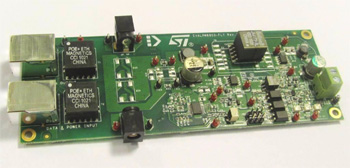

The EVALPM8803-FLY is a demonstration board implementing an IEEE802.3at compatible interface together with a synchronous rectification flyback converter based on PM8803.
The board is designed to work up to 30 W, and with minimal changes the output voltage can be selected either 5 V or 3.3 V. For sake of flexibility, alternative footprint have been foreseen for the main component (MOS, transformer, etc).
It is possible to connect auxiliary sources to one of the 2 jacks in the EVALPM8803-FLY like in real application design. In one case thanks to the PM8803 feature, prevalence of the auxiliary source can be guaranteed.
Three LEDs give indication of
技术特性
- EEE 802.3at compliant
- Support for Gigabit Ethernet
- Data pass-through for the Ethernet data
- Works with power supplied from Ethernet LAN cables or from local auxiliary sources
- Successful IEEE802.3at layer1 classification indicator
- Single output 3.3 V/5 V
- 90+% converter efficiency
- Board size 10x13 cm
| 功能框图
 |
EVALPM8803-FLY 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| EVALPM8803-FLY |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| EVALPM8803-FLY : DB1250: EVALPM8803-FLY: IEEE802.3at compliant demonstration kit with synchronous flyback PoE converter |
1 |
258KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM1063: EVALPM8803-FLY: IEEE802.3at compliant demonstration kit with synchronous active clamp forward converter |
1 |
1498KB |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
