FLI8668 Single-chip dual-channel LCD TV controller
The FLI8668 offers high integration for advanced, dual-channel applications of Picture-in- Picture (PIP) and Picture-by-Picture (PBP). Two video decoders with 3D comb filters and two channels of DCDi processing, and true 10-bit performance provide the highest quality picture for a two-channel application.
Special performance features such as the Faroudja DCDi Cinema video format converter, blue stretch, DDR memory with a read-write of 10 bits per pixel, and flexible sharpening algorithms provide unparalleled performance. The video quality level that was exclusive to Faroudja Home Theater Systems is now available in a single-chip solution.
The FLI8668 also comprises an integrated Analog Front-End (AFE) that includes two triple ADCs, a cross-point switch, and two Faroudja Intellicomb™ 3D comb filters. The flexible AFE ensures simple PCB design with direct connections to TV tuners and input video connectors. Thus, the FLI8668, for a single LCD TV chassis, is able to support worldwide standards. For regional variations, only a connector and firmware change are required.
The integrated VBI dataslicer and decoder eliminate the need for external components resulting in significant cost reduction. The FLI8668 supports many worldwide VBI standards for applications of Teletext, Closed Captioning, V-Chip, and other VBI services.
An embedded microprocessor and a versatile OSD in a single device will facilitate rapid development of a reliable and attractive product. The FLI8668 utilizes the common Cortez family firmware making migration easy and effortless across different hardware platforms within this family.
技术特性
|

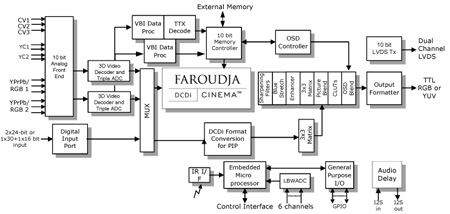

功能框图 |
FLI8668 订购信息
| 订购型号 | 产品状态 | 美金价格 | 数量 | 封装 | 包装形式 | 温度范围 | 材料声明 |
| FLI8668-LF-BC | NRND | PBGA 416 35x35x2.46 | Tray | FLI8668-LF-BC |
DATA BRIEF
| 描述 | 版本 | 大小 |
| FLI8668 :Single-chip dual-channel LCD TV controller | 1 | 134KB |
FLYERS
| 描述 | 版本 | 大小 |
| Faroudja Video Optimized calibration program | 1.0 | 1066KB |
