LMV324L Low cost, low power, general-purpose operational amplifier

The LMV321L, LMV358L and LMV324L are single, dual and quad operational amplifiers with rail-to-rail output capabilities. They are specifically designed to operate at low voltages (2.7 to 5 V) with enhanced performances compared to the industry standard LM3xx series.

The LMV321L, LMV358L and LMV324L are offered in tiny packages, allowing the devices to be used in small portable electronic applications and be placed closer to the actual signal.

The LMV321L, LMV358L and LMV324L are complete cost-effective solutions for designs where cost is of primary importance

技术特性

Low power consumption: 250 μA max at 5 V
Low offset voltage: 7 mV max at 25 °C
Industrial temperature range: -40 °C to +125 °C
Low supply voltage: 2.7 V - 5.5 V
Gain bandwidth product:

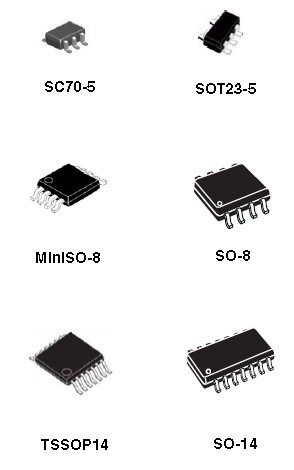

Tiny packages

应用领域

Battery-powered applications
Portable devices
Signal conditioning
Active filtering
Medical instrumentation

管脚定义图

LMV324L 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
LMV324LIPT	Active		1000	TSSOP-14	Tape And Reel	-40 °C-125 °C	LMV324LIPT
LMV324LIDT	Active		1000	SO-14	Tape And Reel	-40 °C-125 °C	LMV324LIDT

DATASHEET

描述	版本	大小
LMV324L :DS9000: Low-power, general-purpose operational amplifier	1	329KB
