M48Z08 ZEROPOWER SRAM

The M48Z08/18 ZEROPOWER®RAM is an 8 K x 8 non-volatile static RAM which is pin and function compatible with the DS1225.

The monolithic chip provides a highly integrated battery-backed memory solution.

The M48Z08/18 is a non-volatile pin and function equivalent to any JEDEC standard 8 K x 8 SRAM. It also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special write timing or limitations on the number of writes that can be performed.

The 28-pin, 600 mil DIP CAPHAT™houses the M48Z08/18 silicon with a long-life lithium button cell in a single package

技术特性
  • Integrated, ultra low power SRAM and power-fail control circuit
  • Unlimited WRITE cycles
  • READ cycle time equals WRITE cycle time
  • Automatic power-fail chip deselect and WRITE protection
  • WRITE protect voltages (VPFD= power-fail deselect voltage):
    • M48Z08: VCC = 4.75 to 5.5 V; 4.5 V ≤ VPFD≤ 4.75 V
    • M48Z18: VCC= 4.5 to 5.5 V; 4.2 V ≤ VPFD≤ 4.5 V
  • Self-contained battery in the CAPHAT™ DIP package
  • Pin and function compatible with JEDEC standard 8 K x 8 SRAMs
  • RoHS compliant
    • Lead-free second level interconnect

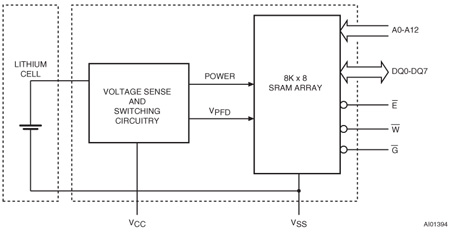

功能框图
M48Z08 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
M48Z08-70PC1 Active   1000 PDIP 28 .7 Tube   M48Z08-70PC1
M48Z08-100PC1 Active   1000 PDIP 28 .7 Tube   M48Z08-100PC1
DATASHEET
描述 版本 大小
M48Z08 : DS0498: 5 V, 64 Kbit (8 Kb x 8) ZEROPOWER® SRAM 8 303KB
APPLICATION NOTES
描述 版本 大小
AN1012 : Predicting the battery life and data retention period of NVRAMs and serial RTCs 4 440KB
AN1011 : Battery technology used in NVRAM and real-time clock (RTC) products from ST 4 249KB
AN1009 : 'Negative undershoot' NVRAM data corruption 1 34KB
