M48Z2M1V ZEROPOWER SRAM

The M48Z2M1Y/V ZEROPOWER®RAM is a non-volatile 16,777,216-bit, static RAM organized as 2,097,152 words by 8 bits. The device combines two internal lithium batteries, CMOS SRAMs and a control circuit in a plastic 36-pin DIP, long module.

The ZEROPOWER RAM replaces industry standard SRAMs. It provides the non-volatility of PROMs without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed

技术特性
  • Integrated, ultra low power SRAM, power-fail control circuit, and batteries
  • Conventional SRAM operation; unlimited WRITE cycles
  • 10 years of data retention in the absence of power
  • Automatic power-fail chip deselect and WRITE protection
  • WRITE protect voltages (VPFD= power-fail deselect voltage):
    • M48Z2M1Y: VCC= 4.5 to 5.5 V; 4.2 V ≤ VPFD≤ 4.5 V
    • M48Z2M1V: VCC= 3.0 to 3.6 V; 2.8 V ≤ VPFD≤ 3.0 V
  • Batteries are internally isolated until power is applied
  • Pin and function compatible with JEDEC standard 2 Mb x 8 SRAMs
  • RoHS compliant
    • Lead-free second level interconnect

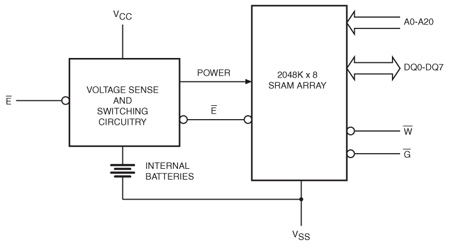

功能框图
M48Z2M1V 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
M48Z2M1V-85PL1 NRND   1000 HYBRID 36L .6 Tube   M48Z2M1V-85PL1
DATASHEET
描述 版本 大小
M48Z2M1V : DS1111: 5 V or 3.3 V, 16 Mbit (2 Mb x 8) ZEROPOWER® SRAM 6 306KB
APPLICATION NOTES
描述 版本 大小
AN1012 : Predicting the battery life and data retention period of NVRAMs and serial RTCs 4 440KB
AN1011 : Battery technology used in NVRAM and real-time clock (RTC) products from ST 4 249KB
AN1009 : 'Negative undershoot' NVRAM data corruption 1 34KB
