PD57002-E RF Power LDMOS transistor

The device is a common source N-channel, enhancement-mode lateral field-effect RF power transistor designed for broadband commercial and industrial applications at frequencies up to 1 GHz. The device is designed for high gain and broadband performance operating in common source mode at 28 V. It is ideal for digital cellular BTS applications requiring high linearity. The PowerSO-10 plastic package, designed to offer high reliability, is the first ST JEDEC approved, high power SMD package. It has been specially optimized for RF needs and offers excellent RF performance and ease of assembly

技术特性
  • Excellent thermal stability
  • Common source configuration
  • POUT = 2 W with 15dB gain @ 960 MHz / 28 V
  • New RF plastic package

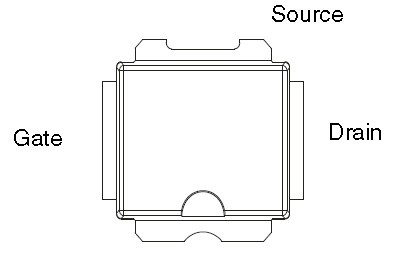

引脚定义图
PD57002-E 功能框图
PD57002-E 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
PD57002-E Active   1000 PowerSO-10RF (formed lead) Tube   PD57002-E
DATASHEET
描述 版本 大小
PD57002-E :DS4737: RF power transistor, LdmoST plastic family N-channel enhancement-mode, lateral MOSFETs 4 521KB
APPLICATION NOTES
描述 版本 大小
AN1294: PowerSO-10RF: the first true RF power SMD package 3 1021KB
PRODUCT PRESENTATIONS
描述 版本 大小
LET series: The new LDMOS series for applications from 1 MHz to 2 GHz 1.0.0 320KB
SW FUNCTIONS
描述 版本 大小
Mismatch analysis EDA tool 1.0.0 1585KB
FLYERS
描述 版本 大小
FLLET1011 : LET series: latest LDMOS series for applications from 1 MHz to 2 GHz 1.0 618KB
