SD57120 RF Power LDMOS transistor

The SD57120 is a common source N-channel enhancement-mode lateral Field-Effect RF power transistor designed for broadband commercial and industrial applications at frequencies up to 1.0 GHz. The SD57120 is designed for high gain and broadband performance operating in common source mode at 28V. Its internal matching makes it ideal for base station applications requiring high linearity

技术特性
  • Excellent thermal stability
  • Common source configuration push-pull
  • POUT = 120W with 13dB gain @ 960MHz
  • BeO free package
  • Internal input matching
  • In compliance with the 2002/95/EC european directive

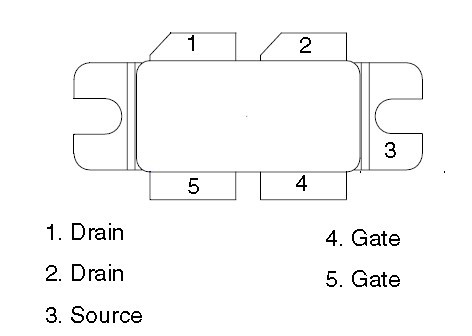

引脚输出
SD57120 功能框图
SD57120 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
SD57120 Active   1000 M252 Tube   SD57120
DATASHEET
描述 版本 大小
SD57120 :RF power transistor the LdmoST family 7 353KB
