ST-7104 Advanced HD decoder for iDTV
The ST-7104 uses state of the art process technology to provide a cost effective, fully featured HD AVC decoder IC. It is a highly integrated system-on-chip suitable for low-cost add-on module for iDTV manufacturers.
The ST-7104 is targeted at the latest CE manufacturer requirements for iDTVs which utilize advanced HD decoding (H264/VC-1/MPEG2), and which conform to DVB, SCTE, ATSC, ARIB, CEA, ITU and OpenCable specifications
技术特性
- Advanced high definition video decoding (H264/VC-1/MPEG2)
- Advanced standard definition video decoding (H264/VC-1/MPEG2/AVS)
- Advanced multi-channel audio decoding (MPEG 1, 2, MP 3, DD/DD+, AAC/AAC+, and WMA9/WMA9pro)
- Linux, Windows CE, and OS21 compatible ST40 applications CPU (450 MHz)
- 32-bit DDR1/DDR2 compatible local memory interface
- Multi-stream, DVR capable transport stream processing
- Extensive connectivity (dual USB hosts, e-SATA, Ethernet MAC/MII/RMII, and PCI)
- Separate digital video and graphics outputs
|

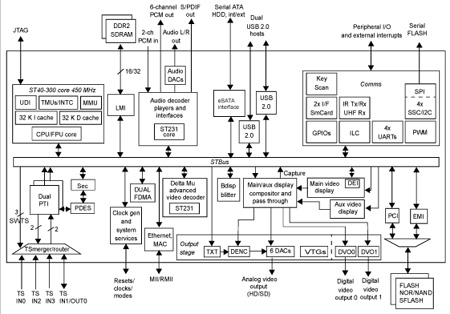

功能框图
 |
ST-7104 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| ST-7104B-IUC |
Active |
|
|
FPBGA620 27x27x2.19 |
Tray |
|
ST-7104B-IUC |
DATA BRIEF
| 描述 |
版本 |
大小 |
| ST-7104 :DB0839: Advanced HD decoder for iDTV |
1 |
75KB |
