ST7-DVP3 Cost-effective ST7-DVP3 series emulator, offers a flexible and modular debugging and programming solution

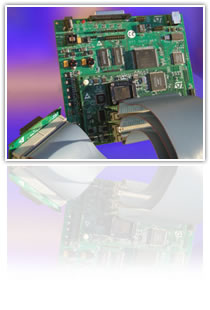

The ST7-DVP3 series emulator is the third generation of low cost emulators, providing powerful, affordable development solutions that included everything you need for real-time emulation, In-Circuit Debugging (ICD) and In-Circuit Programming (ICP) of your ST7 microcontroller.

In combination with ST7 Visual Develop (STVD7) and ST7 Visual Programmer (STVP7), the DVP3 series emulators allow you to build and debug your application, then program it to the ST7 on your application board. STVD7 and STVP7 are free software tools developed by ST Microelectronics.

The ST7-DVP3 series emulators offer start-to-finish control of application development by providing both emulation and In-Circuit Communication (ICC) configurations from a single platform.

In the emulation configuration, the DVP3 emulator and STVD7 software allow you to debug your program while connected to your application board in place of your target ST7.

The ICC configuration allows you to In-Circuit Debug (ICD) your application while it runs on the ST7 on your application board, and to In-Circuit Program (ICP) your ST7 microcontrollers.

技术特性
  • In the emulation configuration the ST7-DVP3 emulator provides a complete range of debugging features, including:
    • Real-time debugging
    • Up to 64 Kbytes of breakpoints with counter and condition
    • 512 record trace with filtering capability
    • Output trigger
    • External input trigger
    • Emulation at 3.3 or 5 V
    • Programmable Clock frequency up to 16 MHz
    • Hardware Test feature for emulator troubleshooting
功能框图
ST7-DVP3 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
ST7MDT10-DVP3             ST7MDT10-DVP3
ST7MDT20-DVP3 Active           ST7MDT20-DVP3
DATASHEET
描述 版本 大小
ST7-DVP3 : Low cost, real time emulator series for ST7 1 147KB
APPLICATION NOTES
描述 版本 大小
AN1504: Starting a PWM signal directly at high level using the ST7 16-bit timer 1 171KB
AN1015: Software techniques for improving microcontroller EMC performance 1 105KB
USER MANUALS
描述 版本 大小
UM0100: ST7MDT25-DVP3 probe user guide 1 1539KB
UM0106: ST7MDT20-DVP3 Probe User Guide 1 1520KB
UM0107: ST7MDT10-DVP3 Probe User Guide 2 1319KB
UM0099: ST7-DVP3 emulator 1 2002KB
