ST802RT1A 10/100 real-time Ethernet 3.3 V transceiver

The ST802RT1x is a high-performance fast Ethernet physical layer interface for 10Base-T, 100Base-TX and 100Base-FX applications. It is designed using advanced CMOS technology to provide MII and RMII interfaces for easy attachment to 10/100 media access controllers (MAC). The ST802RT1x supports the 100Base- TX of IEEE802.3u and 10Base-T of IEEE802.3i and 100Base FX of IEEE 802.3u (B version only).

The ST802RT1x supports both half-duplex and full-duplex operation at 10 and 100 Mbps operation. Its operating mode can be set using auto-negotiation, parallel detection or manual control. It allows for the support of autonegotiation functions for speed and duplex detection. The automatic MDI / MDIX feature compensates for the use of a crossover cable.

With auto MDIX, the ST802RT1x automatically detects what is on the other end of the network cable and switches the TX & RX pin functionality accordingly

技术特性

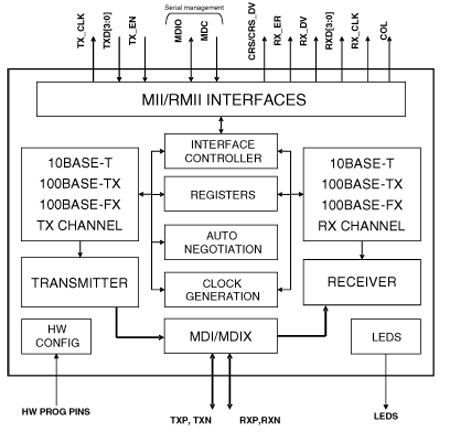

Circuit Diagram
ST802RT1A 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
ST802RT1AFR Active 1.512 1000 LQFP 48 7x7x1.4 Tray   ST802RT1AFR
DATASHEET
下载 描述 版本 大小
ST802RT1A 10/100 real-time Ethernet 3.3 V transceiver 1 591KB
APPLICATION NOTES
下载 描述 版本 大小
AN3411 AN3411: IEEE 1588 precision time protocol demonstration for STM32F107 connectivity line microcontroller 1 1703KB
USER MANUALS
下载 描述 版本 大小
UM1041 UM1041: Getting started with STEVAL-PCC010V2, ST802RT1A and STM32F207 demonstration kit 1 1302KB
