ST890 1.2 A current limited high side power switch with thermal shutdown

The ST890B, ST890C and ST890D are low voltage, P-channel MOSFET power switches intended for high side load switching applications.

These switches operate with inputs from 2.7 V to 5.5 V, making it ideal for both 3 V and 5 V systems.

Internal current limiting circuitry protects the input supply against overload.The thermal overload protection limits power dissipation and junction temperatures.

The maximum current limit is 1.2 A. The current limit through the switch is programmed with a resistor from SET to ground. The devices are available in SO-8 and DFN8L (3 x 3 mm) packages

技术特性

2.7 V to 5.5 V input range
Programmable current limit up to 1.2 A
Low quiescent current
Thermal shutdown
Active low FAULT indicator output
90 m Ω (typ.) ON resistance
SO-8 and DFN8L (3 x 3 mm) packages

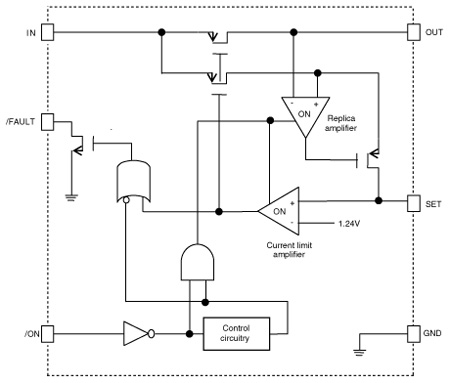

功能框图

ST890 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
ST890BDR	Active		1000	SO-8	Tape And Reel	-40 °C-85 °C	ST890BDR
ST890CDR	Active		1000	SO-8	Tape And Reel	-40 °C-85 °C	ST890CDR
ST890DTR	Active		1000	VFDFPN 8 3x3x0.85	Tape And Reel	-40 °C-85 °C	ST890DTR

DATASHEET

描述	版本	大小
ST890 : DS2696: 1.2 A current limited high side power switch with thermal shutdown	8	552KB

APPLICATION NOTES

描述	版本	大小
AN1441 : ST890: a high side switch for PCMCIA and USB applications	2	381KB
