STA020 96 kHz digital audio interface transmitter

The STA020D is a monolithic CMOS device which encodes and transmits audio data according to the AES/EBU, IEC 958, S/PDIF, & EIAJ CP-340 interface standards. It supports 96kHz sample rate operation

The STA020D accepts audio and digital data which is then multiplexed, encoded and driven onto a cable.

The audio serial port is double buffered and capable of supporting a wide variety of formats.

The STA020D multiplexes the channel, user, and validity data directly from serial input pins with dedicated input pins for the most important channel status bits.

技术特性

MONOLITHIC DIGITAL AUDIO INTERFACE TRANSMITTER
3.3V SUPPLY VOLTAGE
SUPPORTS:
- AES/EBU, IEC 958,
- S/PDIF, & EIAJ CP-340
- Professional and Consumer Formats
PARITY BITS AND CRC CODES GENERATED
TRANSPARENT MODE ALLOWS DIRECT CONNECTION OF STA020D AND STA120

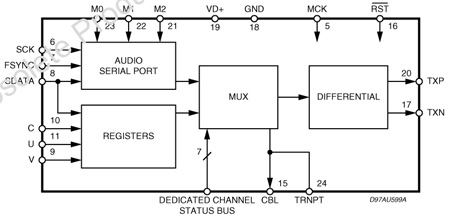

功能框图

STA020 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
STA020DJTR	Active	1.7	1000	SO-24	Tape And Reel	-20 °C-85 °C	STA020DJTR

DATASHEET

下载	描述	版本	大小
STA020	96kHz digital audio interface transmitter	6	209KB
