STB45NF06 N-Channel 60V - 0.022 Ohm - 38A STripFET II MOSFET
These devices are an N-channel Power MOSFET realized with the latest development of STMicroelectronis unique "single feature size" strip-based process. The resulting transistors show extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility
技术特性
- Exceptional dv/dt capability
- Standard threshold drive
- 100% avalanche tested
应用领域
- HIGH-EFFICIENCY DC-DC CONVERTERS
- SOLENOID AND RELAY DRIVERS
- DC-DC & DC-AC CONVERTERS
|

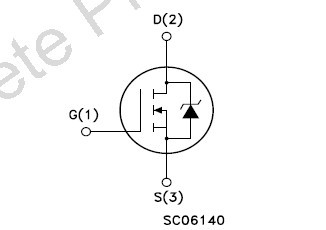

内部原理图
 |
STB45NF06 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STB45NF06T4 |
Active |
|
1000 |
D²PAK |
Tape And Reel |
|
STB45NF06T4 |
DATASHEET
| 描述 |
版本 |
大小 |
| STB45NF06 :DS3855: N-CHANNEL 60V - 0.022 Ohm - 38A D²PAK STripFET™ II MOSFET |
1 |
275KB |
| STB45NF06 :N-channel 60 V, 0.023 Ω, 38 A TO-220/D²PAK STripFET™ II Power MOSFET |
5 |
357KB |
