STE53NC50 N-CHANNEL 500V 0.070 OHM 53A ISOTOP POWERMESH II MOSFET
The PowerMESHTM II is the evolution of the first generation of MESH OVERLAYTM. The layout refinements introduced greatly improve the Ron*area figure of merit while keeping the device at the leading edge for what concerns swithing speed, gate charge and ruggedness
技术特性
- TYPICAL RDS(on) = 0.07 Ω
- EXTREMELY HIGH dv/dt CAPABILITY
- 100% AVALANCHE TESTED
- NEW HIGH VOLTAGE BENCHMARK
- GATE CHARGE MINIMIZED
应用领域
- HIGH CURRENT, HIGH SPEED SWITCHING
- SWITH MODE POWER SUPPLIES (SMPS)
- DC-AC CONVERTERS FOR WELDING
EQUIPMENT AND UNINTERRUPTIBLE
POWER SUPPLIES AND MOTOR DRIVER
|

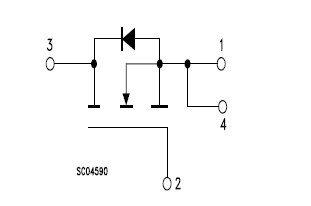

内部原理图
 |
STE53NC50 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STE53NC50 |
Active |
|
1000 |
ISOTOP |
Tube |
|
STE53NC50 |
DATASHEET
| 描述 |
版本 |
大小 |
| STE53NC50 :N-channel 500V 0.070 Ω 53A ISOTOP PowerMESH™ II MOSFET |
2 |
279KB |
