STEVAL-CCM001V2 Graphic panel demonstration board based on the STM32

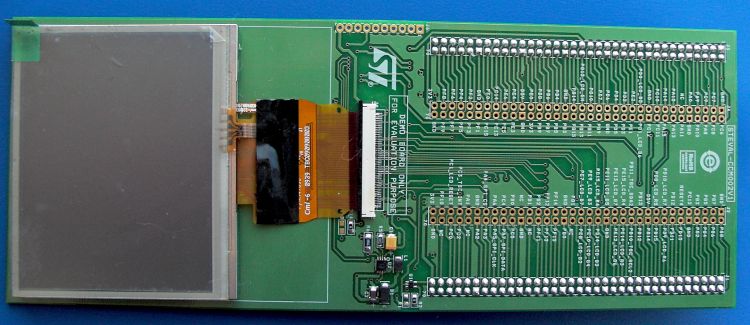

The STEVAL-CCM002V1 demonstration board is an STM32-based LCD controller for TFT-LCD displays. The board provides a platform for testing the capabilities of the STM32F103VET6 FSMC peripheral to drive a TFT-LCD panel without an LCD controller.
A 3.5” QVGA resolution TFT-LCD panel is interfaced with the STM32 FSMC peripheral. The board is designed to be connected as a daughterboard to the STM3210E-EVAL demonstration kit. .
技术特性
- Displays images on a TFT-LCD using the STM32 as LCD controller
- Includes a slideshow of images to demonstrate static display model
- STM32 FSMC (flexible static memory interface) drives TFT using external SRAM as refresh RAM
- On-board constant current drive circuit for LED-based TFT-LCD backlighting
- Dimming control for the TFT-LCD backlighting
- Jumper headers offer easy analysis of TFT-LCD interface to the microcontroller
- RoHS compliant
| 功能框图
 |
STEVAL-CCM001V2 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-CCM001V2 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-CCM001V2 : TFT-LCD panel demonstration board based on the STM32 as LCD controller |
1 |
112KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM0921: STM32-based LCD controller for TFT-LCDs |
1 |
1193KB |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
