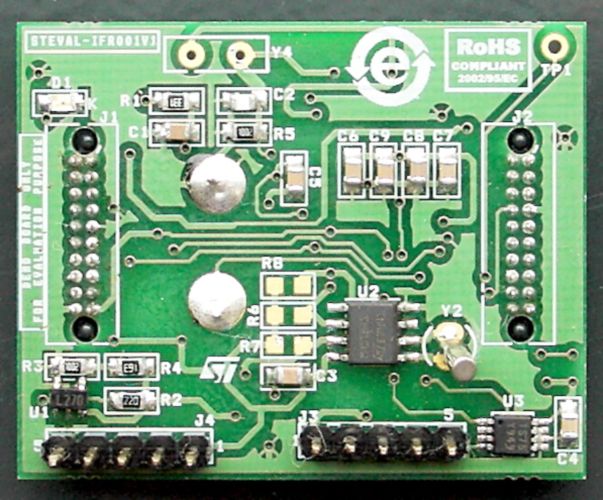

STEVAL-IFR001V1 RTC calibration demonstration daughter card based on the M41T82SM6E to be used in connection with STEVAL-IFS012V1
The STEVAL-IFS012V1 is a multi device temperature sensor demonstration motherboard which supports the demonstration of four RTCs; M41T81S RTC mounted on motherboard, M41T82 (SO-8 package) mounted on separate STEVAL-IFR001V1 daughter card, M41T83(QFN package) mounted on separate STEVAL-IFR002V1 daughter card, and M41T83(SOX18 package) mounted on separate STEVAL-IFR003V1 daughter card.
RTC mode of the GUI is chosen through the RTC selection icon on the GUI.
技术特性
- M41T82 RTC in SO-8 package mounted on daughter card.
- RoHS compliant
| 功能框图
 |
STEVAL-IFR001V1 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-IFR001V1 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-IFR001V1 : RTC calibration demonstration daughter card based on the M41T82SM6E to be used in connection with STEVAL-IFS012V1 |
1 |
125KB |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
