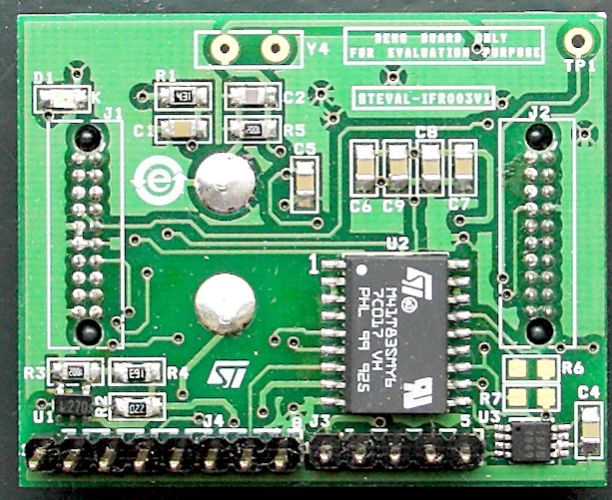

STEVAL-IFR003V1 RTC calibration daughterboard based on the M41T83SMY6E to be used with STEVAL-IFS012V1
The STEVAL-IFR003V1 is an RTC calibration demonstration daughter card to be used in connection with STEVAL-IFS012V1, a multi- device temperature sensor demonstration motherboard. STEVAL-IFS012V1 supports the demonstration of four RTCs; M41T81S RTC mounted on motherboard, M41T82 (SO-8 package) mounted on separate STEVAL-IFR001V1 daughter card, M41T83(QFN package) mounted on separate STEVAL-IFR002V1 daughter card, and M41T83 (SOX18 package) mounted on separate STEVAL-IFR003V1 daughter card.
RTC mode of the GUI is chosen through the RTC selection icon on the GUI.
技术特性
- M41T83 RTC in SOX18 package mounted on daughter card
- RoHS compliant
| 功能框图
 |
STEVAL-IFR003V1 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-IFR003V1 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-IFR003V1 : RTC calibration daughterboard based on the M41T83SMY6E to be used with STEVAL-IFS012V1 |
1 |
267KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN3200: 2.5 kW MMA welding machine |
1 |
979KB |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
