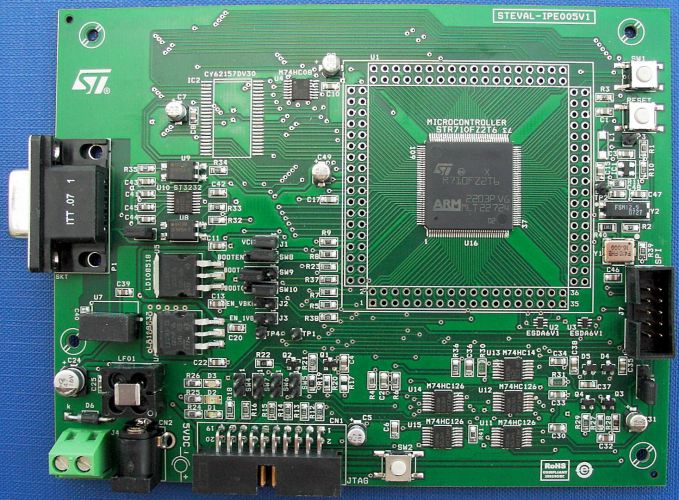

STEVAL-IPE005V1 Demonstration programmer board based on the STPM01
The STEVAL-IPE005V1 demonstration board works in conjunction with the STPM01 energy meter ASSP device and with the STPM01 manager software. It is an integrated system designed to provide the user with a complete, ready-to-use energy meter application. This board is a high-end solution for power metering based on the STR710 microcontroller with an embedded RTC and an external memory interface (EMI) ready to drive 1Mbyte of on-board SRAM. The demonstration board also integrates an on-board optical insulated serial line allowing isolation of the board ground reference in order to avoid propagation of over-voltage on the PC side.
Moreover, the on-board charge pump allows burning the STPM01 energy meter ASSP device registers.
Access to the STPM01 device registers is ensured using a dedicated SPI bus interface. The STPM01 programmer kit demonstrates how effectively the STPM01 can be used in real-world energy meter applications and it helps the user to develop his own application.
技术特性
- Full compatible with the STPM01 energy meter and with the appropriate manager software
- Integrated system designed to provide a complete, ready-to-use energy meter
- High-end solution for power metering based on the STR710 Microcontroller with embedded RTC
- External memory interface (EMI) ready to drive 1 Mbyte of on-board SRAM.
- On-board optical insulated serial line
- On-board charge pump
- Access to the STPM01 device registers, using a dedicated SPI bus interface
