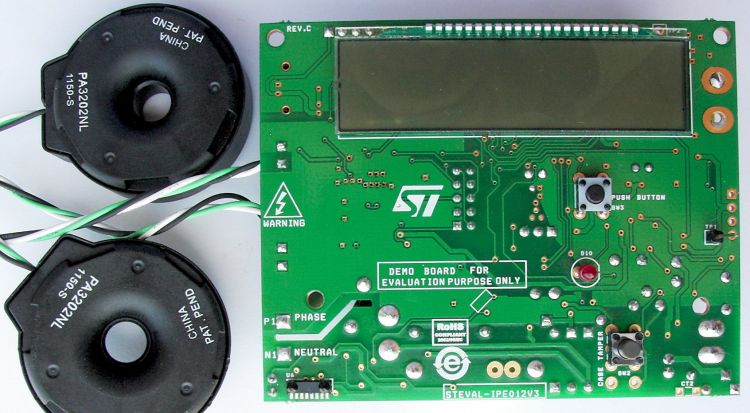

STEVAL-IPE012V3 Single-phase energy meter with Rogowski coil sensor based on the STPM01 and STM8L152C6

The STEVAL-IPE012V3 demonstration board implements a single-phase energy meter based on the STPM01 metering IC and STM8L152C6 microcontroller.

This demonstration board offers a fully functional single-phase solution with parameter display, tamper management, maximum demand (MD) calculation, EEPROM data logging, and low power management.

技术特性
  • Accuracy: class 1 with dynamic range 200:1
  • Nominal voltage: 240 V
  • Nominal current: 10 A (ITYP)
  • Maximum current: 80 A (IMAX)
  • Operating range: 0.6 Vb to 1.2 Vb
  • Meter constant: 3200 impulses/kWh
  • Power frequency range: 45 Hz to 65 Hz
  • Sensor: primary side Rogowski coil and secondary side Rogowski coil
  • Communication interface: IrDA®
  • RoHS compliant
功能框图
STEVAL-IPE012V3 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
STEVAL-IPE012V3 Preview   1000
DATA BRIEF
描述 版本 大小
STEVAL-IPE012V3 : DB1671: Single-phase energy meter with Rogowski coil sensor based on the STPM01 and STM8L152C6 1 298KB
