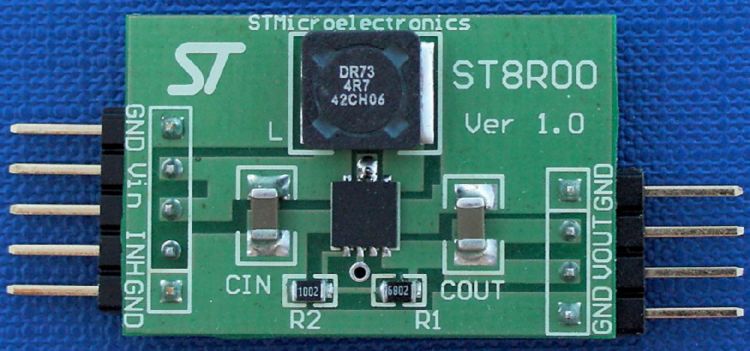

STEVAL-ISA048V2 1 A adjustable Vout PWM synchronous step-up DC-DC converter demonstration board based on the ST8R00W
This demonstration board is based on the ST8R00W family of synchronous step-up DC-DC converters with current output cut-off function that provide up to 1 A over an input voltage range of 4 V to 6 V and an output voltage range of 6 V to 12 V.
The ST8R00W is the continuous mode version, that guarantees the lowest switching ripple when the device is used at light load conditions.
The high switching frequency (1.2 MHz) allows the use of tiny surface-mount components.
Along with the resistor divider to set the output voltage value, an inductor and two capacitors are required. A low output ripple is guaranteed by the current mode PWM topology and by the use of low ESR surface-mounted ceramic capacitors.
技术特性
- Very low supply current: 500 μA (typ)
- Output voltage adjustable from 6 V to 12 V
- Output voltage accuracy: ±2%
- Output current up to 1 A
- Low ripple voltage: 5 mV (typ)
- Synchronous rectification
- High 90% efficiency: VO = 9 V (typ)
- Few external components
- RoHS compliant
| 功能框图
 |
STEVAL-ISA048V2 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-ISA048V2 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| STEVAL-ISA048V2 : 1 A adjustable Vout PWM synchronous step-up DC-DC converter demonstration board based on the ST8R00W |
1 |
161KB |
