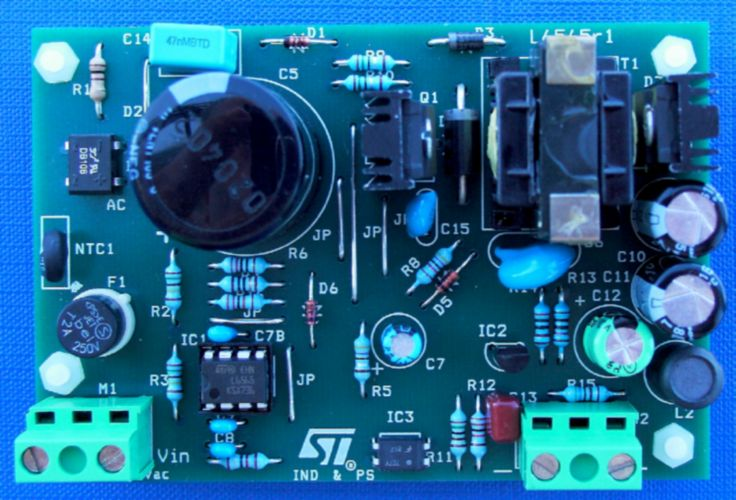

STEVAL-ISC001V1 30 W AC-DC adapter based on the L6565
This evaluation board is an AC-DC adapter for consumer equipment, typically implemented as an external unit
技术特性
- Input voltage range (VIN) from 88 to 264 VAC
- Mains frequency (fL) 50 / 60 Hz
- Maximum output power (POUT 30 W)
- Output voltage VOUT = 15 V ± 3%
- Output current IOUT = from 0 to 2 A
- VRIPPLE = 1 %
- Minimum switching frequency (@ 100 VDCinput voltage) 60 kHz
- Target efficiency (@ POUT= 30 W, VIN = 88 -264 VAC) η > 80%
- Maximum no-load input power < 0.75 W
| 功能框图
 |
STEVAL-ISC001V1 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STEVAL-ISC001V1 |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN2787: Monolithic VR demonstration board for chipset and DDR2/3 supply for ultramobile PC (UMPC) applications |
1 |
2594KB |
| AN2936: 10 W SMPS with HV power MOSFET and the L6565 for three-phase industrial applications |
1 |
303B |
BILL OF MATERIALS
SCHEMATIC PACKS
PCB LAYOUTS
