STG3220 Low Voltage High Bandwidth Dual SPDT Switch

The STG3220 is a high-speed CMOS low voltage dual analog SPDT (single pole dual throw) switch or 2:1 multiplexer/de-multiplexer switch fabricated in silicon gate C2MOS technology. It is designed to operate from 1.65 V to 4.3 V, making this device ideal for portable applications.

The SEL input is provided to control the switch.

The switch nS1 is ON (connected to common ports Dn) when the SEL input is held high and OFF (high impedance state exists between the two ports) when SEL is held low; the switch nS2 is ON (it is connected to common port Dn) when the SEL input is held low and OFF (high impedance state exists between the two ports) when SEL is held high. STG3220 has an integrated fail safe function to withstand over-voltage condition when the device is powered off.

The STG3220 also has an interrupt pin which sends a signal to the processor when the device is in dedicated port charging mode. Additional key features are fast switching speed, break-beforemake- delay time and ultra low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage

技术特性

Ultra low power dissipation:
- Icc = 1 μA (max.) at TA = 85 °C
Low "ON" resistance:
- RON = 4.8 Ω (TA = 25 ºC) at VCC = 4.3 V
- RON = 5.9 Ω (TA = 25 ºC) at VCC = 3.0 V
Wide operating voltage range:
- VCC (opr) = 1.65 V to 4.3 V
4.3 V tolerant and 1.8 V compatible threshold on digital control input at VCC = 2.3 V to 3.0 V
Typical bandwidth (-3 dB) at 800 MHz on all channels
USB (2.0) high speed (480 Mbps) signal switching compliant
Integrated fail safe function
Interrupt function to indicate to the processor that the device is in dedicated port charging mode
Latch-up performance exceeds 500 mA per JESD 78, Class II
ESD performance exceeds JESD22:
- Dn pins: 4000-V human body model (A114-A)
- All other pins: 2000-V human body model (A114-A)

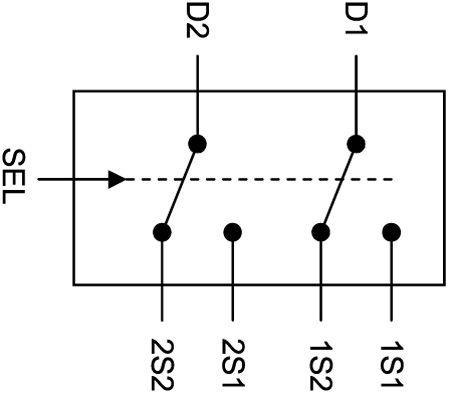

功能框图

STG3220 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
STG3220QTR	Active		1000	VFQFPN 10 1.8x1.4x0.5	Tape And Reel		STG3220QTR

DATASHEET

描述	版本	大小
STG3220 : DS6241: Low voltage high bandwidth dual SPDT switch	1	486KB
