STGD10NC60HD Very fast "H" series
This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior
技术特性
- Low on-voltage drop (VCE(sat))
- Low CRES / CIES ratio (no cross-conduction susceptibility)
- Very soft ultra fast recovery antiparallel diode
应用领域
- High frequency motor controls
- SMPS and PFC in both hard switch and
resonant topologies
|

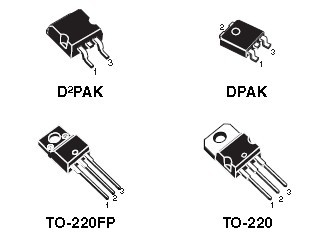

管脚定义图
 |
STGD10NC60HD 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STGD10NC60HDT4 |
Active |
0.645 |
1000 |
DPAK |
Tape And Reel |
|
STGD10NC60HDT4 |
| STGD10NC60HD |
Active |
0.645 |
1000 |
DPAK |
Tube |
|
STGD10NC60HD |
DATASHEET
| 描述 |
版本 |
大小 |
| STGD10NC60HD :DS4527: 600 V - 10 A - very fast IGBT |
5 |
767KB |
