STGWA19NC60HD 31 A, 600 V, very fast IGBT with Ultrafast diode
This device is an ultrafast IGBT. It utilizes the advanced Power MESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.
技术特性
- Low on-voltage drop (VCE(sat))
- Very soft Ultrafast recovery anti-parallel diode
应用领域
- High frequency motor drives
- SMPS and PFC in both hard switch and
resonant topologies
|

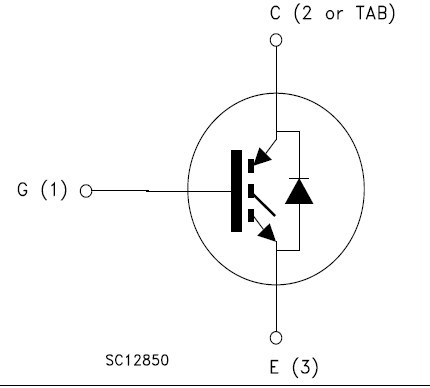

内部原理图
 |
STGWA19NC60HD 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STGWA19NC60HDT4 |
Active |
|
1000 |
TO-247 long leads |
Tape And Reel |
|
STGWA19NC60HDT4 |
| STGWA19NC60HD |
Active |
|
1000 |
TO-247 long leads |
Tube |
|
STGWA19NC60HD |
DATASHEET
| 描述 |
版本 |
大小 |
| STGWA19NC60HD :DS8654: 31 A, 600 V, very fast IGBT with Ultrafast diode |
1 |
518KB |
