STIEC45-XXAS Transil™ for IEC 61000-4-5 compliance

The STIEC45 Transil series has been designed to protect DC power supply lines according to IEC 61000-4-5. This device protects circuits against electrical fast transients (EFT) according to IEC 61000-4-4 and ETS EN 300 386.

Protection against electrostatic discharges is provided according to IEC 61000-4-2 and MIL STD 883 Method 3015.

Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.

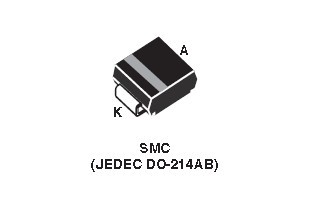

The STIEC45 device is packaged in SMC (SMC footprint in accordance with IPC 7351 standard).

技术特性

Peak pulse current: 500 A (8/20 μs, 1.2/50 μs)
Stand off voltage range: from 24 V to 33 V
Unidirectional types
Low leakage current
- 0.2 μA at 25 °C
- 1 μA at 85 °C
Operating Tj max: 150 °C
High peak current capability at Tj max : 410 A 8/20 μs
JEDEC registered package outline
Complies with the following standards
- IEC 61000-4-2 level 4
  - 15 kV (air discharge)
  - 8 kV (contact discharge)
- MIL STD 883G - Method 3015-7 Class 3B
  - 25 kV HBM (human body model)
- IEC 61000-4-5
  - Level 4 4 kV with R = 12 Ω (334 A) common mode
  - Level 2 1 kV with R = 2 Ω (500 A) differential mode
- MIL STD 883G, method 3015-7 Class 3B -25 kV HBM (human body model)
- Resin meets UL 94, V0
- MIL-STD-750, method 2026 soldererabilty
- EIA STD RS-481 and IEC 60286-3 packing
- IPC 7531 footprint

Complies with the following standards

IEC 61000-4-2 level 4
– 15 kV (air discharge)
– 8 kV (contact discharge)
MIL STD 883G - Method 3015-7 Class 3B
– 25 kV HBM (human body model)
IEC 61000-4-5
– Level 4 4 kV with R = 12 Ω (334 A) common mode
– Level 2 1 kV with R = 2 Ω (500 A) differential mode
MIL STD 883G, method 3015-7 Class 3B
-25 kV HBM (human body model)
Resin meets UL 94, V0
MIL-STD-750, method 2026 soldererabilty
EIA STD RS-481 and IEC 60286-3 packing
IPC 7531 footprint

功能框图

STIEC45-XXAS 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
STIEC45-26AS	Active	0.662	1000	SMC	Tape And Reel		STIEC45-26AS
STIEC45-27AS	Active	0.85	1000	SMC	Tape And Reel		STIEC45-27AS
STIEC45-24AS	Active	0.735	1000	SMC	Tape And Reel		STIEC45-24AS
STIEC45-33AS	Active	0.662	1000	SMC	Tape And Reel		STIEC45-33AS
STIEC45-30AS	Active	0.662	1000	SMC	Tape And Reel		STIEC45-30AS
STIEC45-28AS	Active	0.735	1000	SMC	Tape And Reel		STIEC45-28AS

DATASHEET

描述	版本	大小
STIEC45-XXAS : Transil™ for IEC 61000-4-5 compliance	1	298KB
