STLED316S Serial-interfaced 6-digit LED controller with keyscan
The STLED316S is a compact LED controller and driver that interface microprocessors to LED displays through a serial 3-wire interface. It drives LED connected in common anode configuration.
The STLED316S drives up to 48 discrete LEDs in 8 segment/6 digit configuration while functioning from a supply voltage of 5.0V. Additionally it can be used to drive 8 discrete LEDs which form a part of LED digit. The individual LEDs are wired as segments of a digit and brightness of these individual LEDs can be controlled digitally. The maximum segment current for the display digits is set through a single external resistor. Individual digits may be addressed and updated without rewriting the entire display.
Additionally it includes key scanning for an 8x2 key matrix which automatically scans a matrix of up to 16 switches. STLED316S supports numerictype displays and reduces the overall BOM costs through high integration. Also it provides ESD protection of greater than 4 kV HBM.
The LED controller/driver is ideal as a peripheral device to interface the display with a singlechip microcomputer.
技术特性
- LED driver with 14 outputs (8 segments/6 digits)
- 40 mA load current capability for each segment
- Output pins connected directly to the LEDs or can be open-drain
- Key-scanning (8 x 2 matrix)
- Low power consumption in standby mode
- 3-wire serial bus interface (CLK, STB, DIN/DOUT)
- 8-step dimming circuit to control the overall display brightness
- Single external resistor for output current setting
- Inputs with Schmitt trigger give superior noise immunity
- A single LED digit output (DIG1_LED) can be used to drive up to 8 discrete LEDs
- 8-step dimming circuit to control brightness of individual LEDs for LED digit
- 5.0 V (± 10%) for VCC
- Drives common-anode LED digits
- Built-in power on reset and soft-start circuits
- Available in SO24 package
- -40 °C to 85 °C operating temperature range

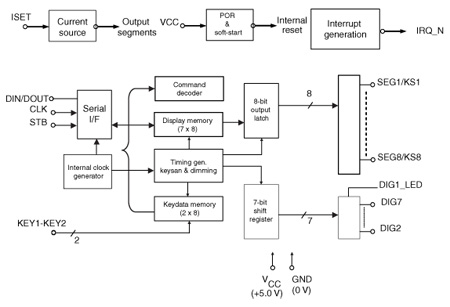

| 功能框图
 |
STLED316S 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STLED316SMTR |
Active |
|
|
SO-24 |
|
|
STLED316SMTR |
DATASHEET
| 描述 |
版本 |
大小 |
| STLED316S : DS5656: Serial-interfaced 6-digit LED controller with keyscan |
1 |
450KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN2786: STEVAL-IHI001V1 demonstration board: washing machine user interface based on the ST7LITE49M and STLED316S |
1 |
229KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM0425: STLED316S Front panel LED controller/driver evaluation board |
1 |
348KB |
| UM0756: STEVAL-ICB003V1 front panel demonstration board based on the STLED316S and the STMPE1208S |
1 |
824KB |
| UM0460 : Set-top box front panel evaluation board based on the STLED316S |
1 |
667KB |
