STM32F4-NETMF Microsoft .NET Micro Framework platform for STM32 F4 series

The STM32F4-NETMF is a complete, cost-effective solution to start an application development with the Microsoft .NET Micro Framework environment for an STM32F4 ARM Cortex-M4 core-based microcontroller.

It allows developing, testing and deploying embedded software in C#, using Microsoft Visual Studio tools, all necessary hardware being included.

You need to install Microsoft Visual Studio 2010 or its free version, Microsoft Visual C# 2010 Express, and the .NET Micro Frame Software Development Kit and associated packages.

The "Getting Started with Mountaineer" tutorial guides you to write your first application. Mountaineer websites are: http://www.mountaineer.org and http://www.mountaineer-boards.com

.NET Micro Framework website is: http://www.netmf.org

Gadgeteer websites are: http://www.netmf.com/gadgeteer and http://gadgeteer.codeplex.com

技术特性

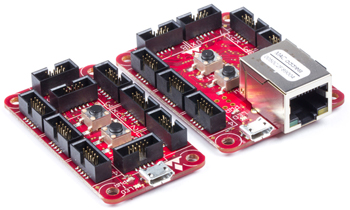

  • STM3240G-ETH/NMF evaluation board
    • STM32F407VG MCU
    • Ethernet connector and embedded lwIP Stack: HTTP, TCP, UDP, DHCP, ICMP (no separate Ethernet module needed)
    • 8 Gadgeteer sockets for: GPIO (34x), CAN, SPI (2x), I²C, UART (4x), AD (3x), DA, PWM (3x)
    • Integrated micro USB connector (no separate USB client module needed)
    • 2 pushbutton switches (Reset and User)
    • Embedded 8-MByte Flash memory (SPI)
    • Power LED (green) and RGB User LED
    • Serial Wire Debug (SWD) and boot mode selection on the manufacturer-specific connector (Z)
    • Low power modes
    • 100 % open source hardware and software
  • STM3240G-USB/NMF evaluation board
    • STM32F407VG MCU
    • 9 Gadgeteer sockets for: GPIO (34x), CAN, SPI (2x), I²C, UART (4x), AD (3x), DA, PWM (3x), USB Device/Host (independent from the second USB port, described below)
    • Integrated micro USB connector (no separate USB client module needed)
    • 2 pushbutton switches (Reset and User)
    • Embedded 8-MByte Flash memory (SPI)
    • Power LED (green) and RGB User LED
    • Serial Wire Debug (SWD) and boot mode selection on the manufacturer-specific connector (Z)
    • Low power modes
    • 100 % open source hardware and software
功能框图
STM32F4-NETMF 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
STM3240G-USB/NMF Active   1000       STM3240G-USB/NMF
STM3240G-ETH/NMF Active   1000       STM3240G-ETH/NMF
DATA BRIEF
描述 版本 大小
STM32F4-NETMF : DB1735: Microsoft .NET Micro Framework environment for STM32F4 microcontrollers 3 123KB
