STM32TS60 Multi-touch screen controller
The STM32TS60 device incorporates the high-performance ARM, Cortex-M3, 32-bit RISC core, operating at a 72-MHz frequency, with high-speed embedded memories (32 Kbytes Flash memory and 10 Kbytes SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. It offers two 12-bit ADCs, two general purpose 16-bit timers, as well as standard and advanced communication interfaces: two I²Cs, two SPIs, one USART, and a USB.
The device operates from a 2.4 to 3.6 V power supply. It is available in the –40 to +85 °C temperature range. A comprehensive set of power-saving modes allow the design of low-power applications.The STM32TS60 device is available in a UFBGA144 7 mm x 7 mm package and die form (unsawn wafer).
技术特性
- Core: ARM 32-bit CortexTM-M3 CPU
- 72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
- Single-cycle multiplication and hardware division
- Memories
- 32 Kbytes of Flash memory
- Clock, reset and supply management
- 2.4 to 3.6 V application supply and I/Os
- POR, PDR, and programmable voltage detector (PVD)
- 4 to 16 MHz crystal oscillator
- Internal 8-MHz factory-trimmed RC
- Low power
- Sleep, Stop and Standby modes
- 2 x 12-bit, 1 μs A/D converters (with up to 64 channels)
- Conversion range: 0 to 3.6 V
- Dual-sample and hold capability
- DMA
- Peripherals supported: timers, ADC, SPIs, I²Cs, USART, PMSE and PMAD.
- Up to 138 fast I/O ports
- PMatrix™ scanning engine (PMSE) and PMatrix™ area detection (PMAD)
- Up to 81 columns and 64 rows
- Debug mode
- Serial wire debug (SWD) & JTAG interfaces
- 5 timers
- 2 x 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
- 2 x watchdog timers (independent and window)
- SysTick timer: a 24-bit downcounter
- 6 communication interfaces
- 2 x I²C interfaces (SMBus/PMBus)
- 1 x USART (ISO 7816 interface, LIN, IrDA capability, modem control)
- 2 x SPIs (18 Mbit/s and 9 Mbit/s)
- USB 2.0 full-speed interface
- CRC calculation unit, 96-bit unique ID
- Packages are ECOPACK®

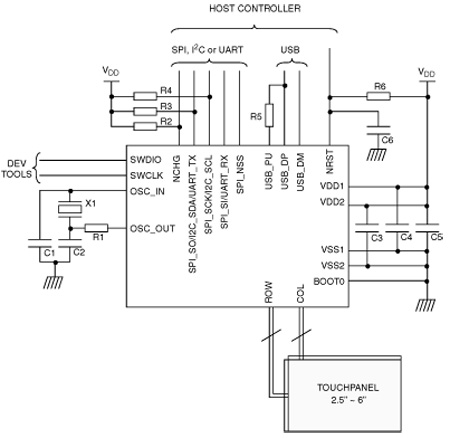

| 功能框图
 |
STM32TS60 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STM32TS60ZH6 |
Active |
|
1000 |
UFBGA 144 7x7x0.6 |
Tube |
-40 °C-85 °C |
STM32TS60ZH6 |
DATA BRIEF
| 描述 |
版本 |
大小 |
| STM32TS60 : DB0942: ARM®-based 32-bit MCU with resistive multitouch engine, 32 KB Flash, USB, 5 timers, 2 ADCs, and 6 communication interfaces |
3 |
340KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN1709: EMC design guide for ST microcontrollers |
1 |
657KB |
| AN1181: Electrostatic discharge sensitivity measurement |
1 |
59KB |
| AN2639: Soldering recommendations and package information for Lead-free ECOPACK® microcontrollers |
2 |
209KB |
BOARDS AND TOOLS
| Part Number |
描述 |
| STVP |
ST Visual Programmer for programming ST7, STM8, STM8T and STM32 |
