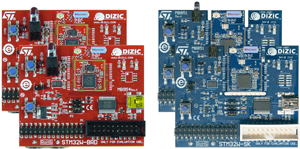

STM32W-EXT Extension boards for evaluation kit for STM32 Wireless devices
The STM32W-SK and STM32W-EXT starter and extension kits are easy to use tools for the STM32W108xx microcontrollers. This family of microcontrollers integrates a 32-bit ARM® Cortex™-M3 microprocessor and a 2.4 GHz, IEEE 802.15.4-compliant transceiver. The kits demonstrate how effectively the STM32W108xx can be used in real IEEE 802.15.4 applications.
The STM32W108xx kits provide demonstration applications and documentation which serve as a reference for creating your own applications and re-programming the STM32W108xx microcontroller. You can run the STM32W108xx kits in several ways (building mesh networks, remote control/target and point-to-point applications), using the dedicated software libraries (ZigBee PRO, ZigBee RF4CE, and Simplified MAC), as well as a third-party IDE and C compiler (IAR).Moreover, the STM32W108xx kits provide a set of HAL APIs which allow you to use the kit platform capabilities such as LEDs and serial communication channels (virtual COM through USB).
技术特性
- 32-bit ARM® Cortex™-M3 microprocessor
- 2.4 GHz, IEEE 802.15.4-compliant transceiver
- Suitable for different types of wireless network scenarios such as:
- Mesh networks (based on the ZigBee PRO protocol stack) typically used in home automation and smart energy applications.
- Remote control and target networks (based on the ZigBee RF4CE protocol stack) used for driving consumer devices such as TVs, set-top boxes, etc.
- Point to point networks (based on a Simplified MAC library) used to address a basic IEEE 802.15.4 communication. This configuration enables customers to develop any protocol stack of their choice
| 功能框图
 |
STM32W-EXT 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STM32W108B-EXT |
Active |
|
1000 |
|
|
|
STM32W108B-EXT |
| STM32W108C-EXT |
Active |
|
1000 |
|
|
|
STM32W108C-EXT |
DATA BRIEF
| 描述 |
版本 |
大小 |
| STM32W-EXT : Starter and extension kits for STM32W108xx microcontrollers |
1 |
42KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN3262: Using the over-the-air bootloader with STM32W108 devices |
2 |
1319KB |
| AN3206: PCB design guidelines for the STM32W108 platform |
3 |
282KB |
| AN3218: Adjacent channel rejection measurements for the STM32W108 platform |
2 |
96KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM0978: Using the Simple MAC nodetest application |
3 |
192KB |
| UM0894: STM32W-SK and STM32W-EXT starter and extension kits for STM32W108xx microcontrollers |
5 |
826KB |
| UM0893: STM32W108xx Simple MAC library |
9 |
576KB |
FIRMWARE
| 描述 |
版本 |
大小 |
| STM32W-EXT firmware package (AN3268) |
1.0.0 |
1630KB |
