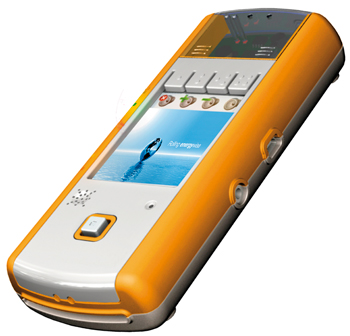

STM8L-PRIMER Complete EvoPrimer ready to use from Raisonance for easy evaluation and development with STM8L MCUs

Raisonance’s Primers are a uniquely fun, easy, low-risk solution for exploring, evaluating and developing applications for the STM32 and STM8 microcontrollers. They include everything that users need to better understand the STM32/STM8’s peripheral implementation and operation.

The EvoPrimer range is an enhancement of the original Primer1 and Primer2 devices. It offers even more flexibility to evaluate a range of STM32 microcontrollers and STM8L ultralow power line microcontrollers, using the same EvoPrimer base with interchangeable target boards (to test different microcontrollers) or extension boards.

技术特性

The versatile EvoPrimer range includes:
- In-circuit debugging/programming via dedicated USB connection to the host PC
- Evaluation features including USB connector and MEMs sensor
- Comprehensive development software
- Ergonomic design
- MEMs-based controls
- Touchscreen TFT display, color LCD
- Joystick
- Audio circuit/Jack
- MEMS accelerometer
- Li-Ion battery with charge management circuit
- Micro SD Card™ connector
- Add-on connector for extension boards with USART, SPI, I²C and analog/digital I/Os
STM8L ultralow power EvoPrimer features:
- STM8L152C6 MCU with 32 KB Flash
- Low power consumption
- LCD (7-segment)
- Temperature sensor
- Solar cells
STM32F connectivity lineEvoPrimer features:
- STM32F107VC MCU with 256 KB Flash
- Mini-USB OTG connector
STM32F performance lineEvoPrimer features:
- STM32F103VG MCU with 1 MB Flash
- Mini-USB connector
STM32F high-performance and Digital Signal Processing (DSP) EvoPrimer features:
- STM32F407IG MCU with 1 MB Flash
- 1.3 M pixel image sensor
- 3-axis gyroscope
- 16 Mbit of SRAM
- STA529A audio-codec
- Mini-USB connector (HS, USB 2.0 OTG) and dual CAN connector
STM32L ultralow power EvoPrimer features:
- STM32L152VB MCU with128 KB Flash
- LCD (14-segment)
- Temperature and pressure sensors
- Solar cells and Li-ion battery
Inertial sensor extension board features:
- 3-axis gyroscope
- Pressure and temperature sensor
- Magnetometer and accelerometer
Primer2 (STM3210E-PRIMER) and Primer1 (STM3210B-PRIMER) are replaced by the STM32F performance line EvoPrimer

功能框图

STM8L-PRIMER 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
STM8L-PRIMER	Active		1000				STM8L-PRIMER

DATA BRIEF

描述	版本	大小
STM8L-PRIMER : DB0475: Raisonance STM32 and STM8 Primers for fun, easy evaluation and development with STM32 and STM8	8	165KB

APPLICATION NOTES

描述	版本	大小
AN2869: Guidelines for designing touch sensing applications	6	980KB
AN3139: Migration and compatibility guidelines for STM8L microcontroller applications	3	802KB
AN3269: Introduction to STM8L15x power saving modes using the STM8L-PRIMER IDD measurement feature	1	212KB
AN3252: Building a wave generator using STM8L-PRIMER	1	272KB

USER MANUALS

描述	版本	大小
UM0970: STM8L-PRIMER	2	1225KB
UM1014: Getting started with STM8L-PRIMER	2	106KB
UM0991: Developing and debugging your STM8L-PRIMER application code	2	1787KB

FIRMWARE

描述	版本	大小
Developing and debugging your STM8L-PRIMER application code (UM0991)	2.0.1	9048KB
