STMPS2121 Enhanced single channel power switches
The STMPS21x1 power distribution switches are intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices incorporate 90 mO N-channel MOSFET high-side power switches for power-distribution. These switches are controlled by a logic enable input.
When the output load exceeds the current-limit threshold or a short is present, the device limits the output current to a safe level by switching into a constant-current mode. When continuous heavy overloads and short circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts the switch off to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch remains off until a valid input voltage is present
技术特性
- 90 mΩ high-side MOSFET switch
- 500/1000 mA continuous current
- Thermal and short-circuit protection with overcurrent logic output
- Operating range from 2.7 V to 5.5 V
- CMOS- and TTL-compatible enable inputs
- Undervoltage lockout (UVLO)
- 12 µA maximum standby supply current
- Ambient temperature range, -40°C to 85°C
- 8 kV ESD protection
- Reverse current protection
- Fault-blanking
|

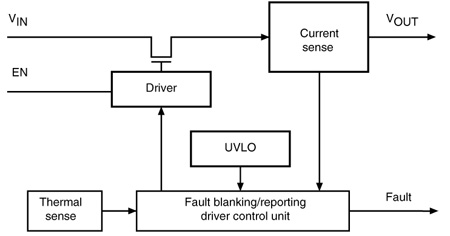

功能框图
 |
STMPS2121 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STMPS2121TTR |
Active |
|
1000 |
MSOP/TSSOP 8 |
Tape And Reel |
-40 °C-85 °C |
STMPS2121TTR |
| STMPS2121STR |
Active |
|
1000 |
SOT-23 5L |
Tape And Reel |
-40 °C-85 °C |
STMPS2121STR |
| STMPS2121MTR |
Active |
|
1000 |
SO-8 |
Tape And Reel |
-40 °C-85 °C |
STMPS2121MTR |
DATASHEET
| 描述 |
版本 |
大小 |
| STMPS2121 : Enhanced single channel power switches |
4 |
1365KB |
