STP22NF03L N-Channel 30V - 0.038 Ohm - 22A - TO-220 STripFET(TM) POWER MOSFET
This Power MOSFET is the latest development of STMicroelectronics unique "single feature size" strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility
技术特性
- Exceptional dv/dt capability
- Low gate charge at 100˚C
- Application oriented characterization
- 100% avalanche tested
应用领域
|

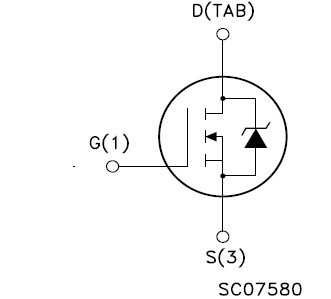

内部原理图
 |
STP22NF03L 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STP22NF03L |
NRND |
|
1000 |
TO-220AB |
Tube |
|
STP22NF03L |
| STP22NF03LT4 |
NRND |
|
1000 |
TO-220AB |
Tape And Reel |
|
STP22NF03LT4 |
DATASHEET
| 描述 |
版本 |
大小 |
| STP22NF03L :DS2003: N-channel 30 V, 0.0038 Ω, 22 A, TO-220 STripFET™ II Power MOSFET |
5 |
531KB |
